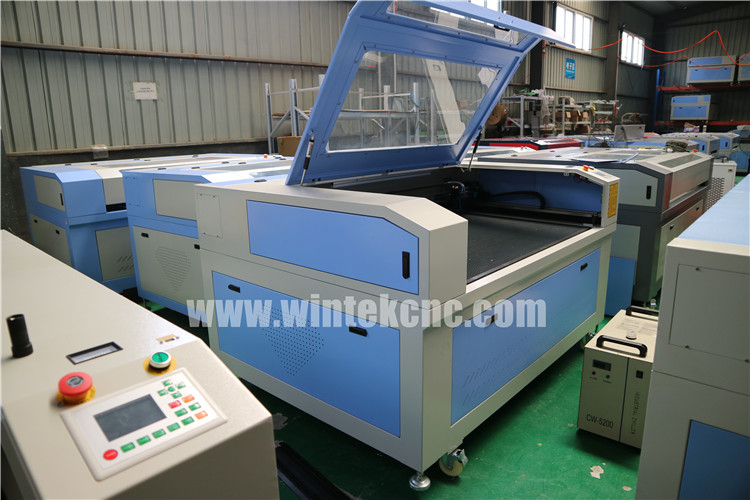

Model: WTJ1390-CCD Category: Co2 Laser Cutting Machine
USD
4500$-6500$ FOB Qingdao
Co2 laser machine with one ccd can cut printed materials with high accuracy, such as paper,leather,clothing.
Videos of CCD automatic positioning laser machine :
Application of CCD automatic positioning laser machine :
Applicable Materials: Rubber,plastic,cloth ,leather , woollens ,crystal,organic glass ,tile,jade ,bamboo,wood ,etc.
Applicable Indusries: Rubber,plastic,cloth toys,leather ,computer embroidery cutting
,mould ,crafts ,bamboo and wood ,advertising and building decoration ,packaging and printing ,paper products.
Typical Application: Acrylic crystal words,acrylic fish tank,ceramic crafts,rubber board printing,applique,special-shaped trademark,engraving and hollowing out patterns or designs on garment and leather.
Pay attention :
1. If you need cut printed materials, your laser machine will need one ccd camera. Small CCD scan area : 10*10cm or 12*8cm .
If scann area is bigger, we need change to one bigger ccd.
2. If you need cut fabric, clothing, leather, it's better to add one auto feeding device on the machine.
Videos of ccd automatic positioning laser machine with auto feeding device :
Feature of CCD automatic positioning laser machine :
1. Configure high power laser tube.

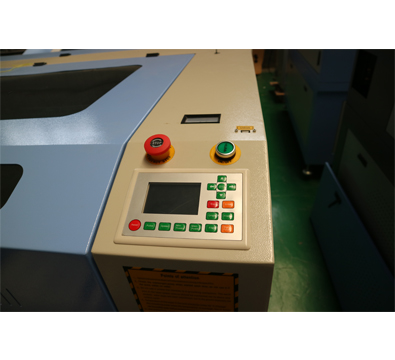

2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3. Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt international linear rail, more precision.

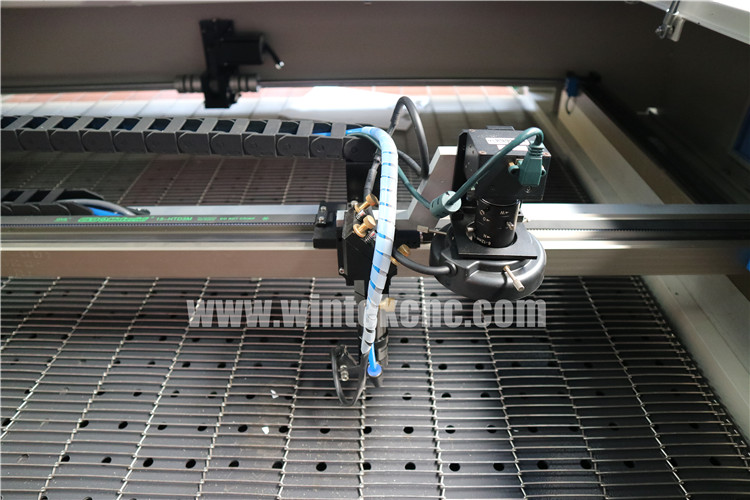

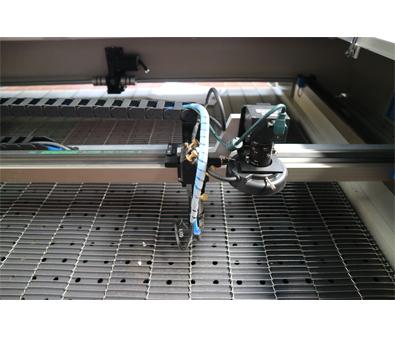

6. The Camera in Automatic Camera Positioning Cutting Machine reflects very fast with high frame rate. It’s much easier to install and adjust. One time position fixing will be OK for total work.
7. Have professional visual light source. During working process, it can automatically intake the pictures into computer by the visual system. Through treatment, it can automatically search for the work and position accurately to cut.
8. Two working models “identify firstly then cut” and “identify and cut together”, with the design of “shortest cutting path software” can save 20% time averagely.
|
Product Name
|
CCD automatic positioning laser machine |
|
Working area
|
1600*1000mm, 1600*2600mm, 1500*3000mm, other size can be customized
|
|
Cooling mode
|
water cooling and protection system
|
|
Cutting speed
|
1-1000mm/min
|
|
Engraving Speed
|
1-6000mm/min
|
|
Software
|
Laser cut 5.3, CorelDraw AutoCAD Photoshop
|
|
Support graphic format
|
DST, PLT, BMP, DXF
|
|
Package
|
standard plywood package
|
Here is another model for your choice :
Automatic CCD Camera laser cutting machine,auto feeding laser cutting machine
