Model: WTJ1610-Feeding Category: Co2 Laser Cutting Machine
USD
3600$-5200$ FOB Qingdao

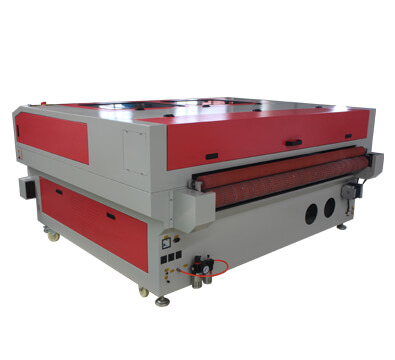

This double heads 1610 CNC Fabric Laser Cutting Machine with Auto Feeding System can help you improve working efficency of cutting fabric,speed is fast, accuracy is high.
Applicable materials for double heads 1610 cnc fabric laser cutting machine :
1. In garment material : leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
2. Advertisement material: such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
3. Wood material : wood engraving and cutting, MDF engraving, plywood cutting.
2.Technical Parameter of double heads 1610 cnc fabric laser cutting machine :
| Model |
WTJ1610-Feeding Fabric Textile Laser Cutting Machine |
| Laser Power |
Reci W1 tube (75w-90w) Optional : 80W/100W/130W/150W |
| Laser Type | CO2 sealed, glass laser tube, water cooling |
| Work Area | 1600 X 1000 mm |
| Cooling Type | Water-cooled and Protection System |
| Engraving Scanning Speed | 0-60000 mm/min |
| Cutting Speed | 0-10000 mm/min |
| Laser Output Control | 1-100% Software Setting |
| Smallest Character Engraving | English: 1.0X1.0 mm |
| Highest Scanning Precision | 2500DPI |
| Power Supply | AC 110-220V±10%, 50-60Hz |
| Operating Temperature | 0°-45°C |
| Operating Humidity | 5%-95% |
| Locating Precision | ≤±0.01mm |
| Supported File Format |
BMP, HPGL, JPEG, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Compatible Software | CORELDRAW, PHOTOSHOP, AUTOCAD |
| Slope Engraving | 360°Slope Can Be Designed Easily |
| Driving System | Stepper Motor |
| Standard Software | LaserCut5.3 / RD |
| Net Weight | 1000KGS |
| Gross Weight | 1250KGS |
| Removable Spare Parts | Laser Tube and Lens |

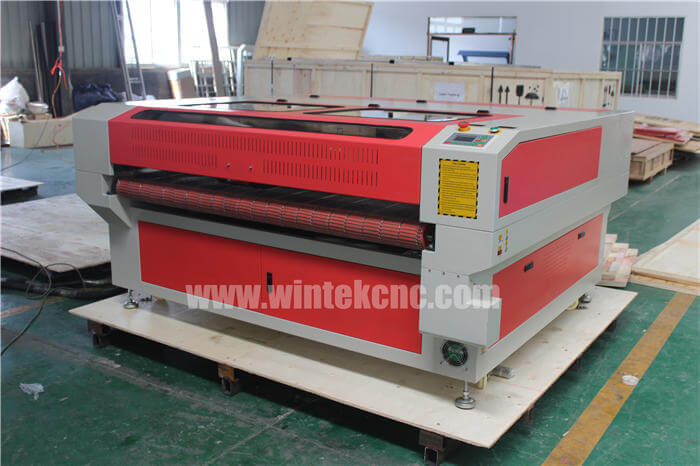

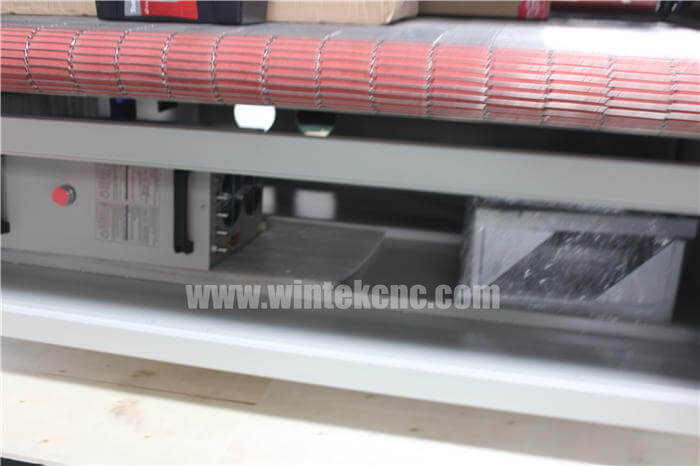

Machine details show :

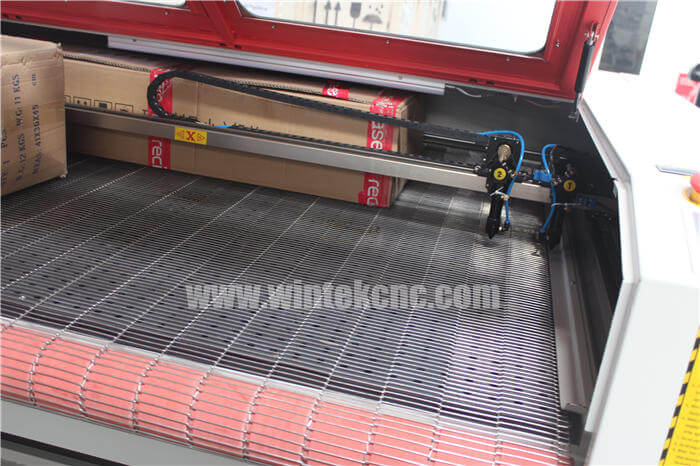

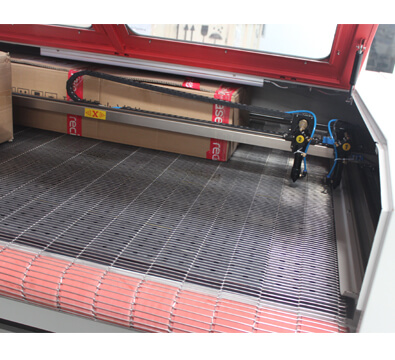

Double heads with high speed sliding rails :

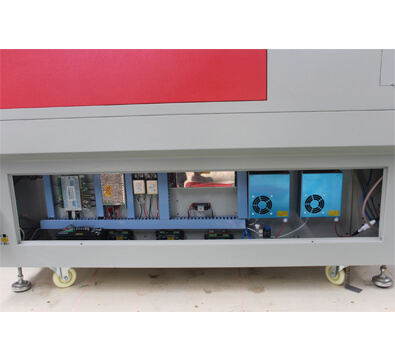

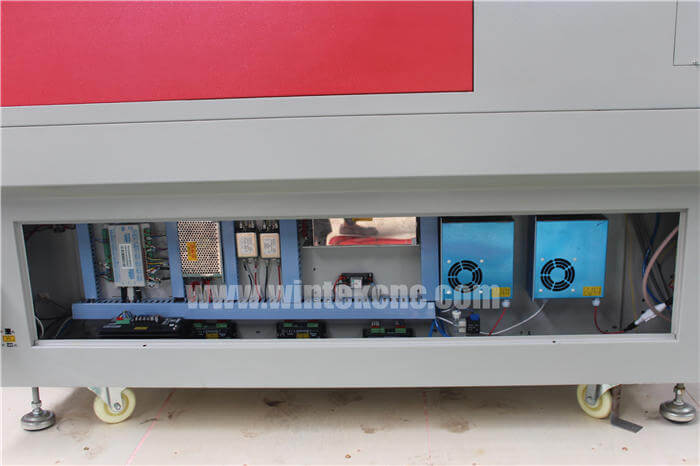

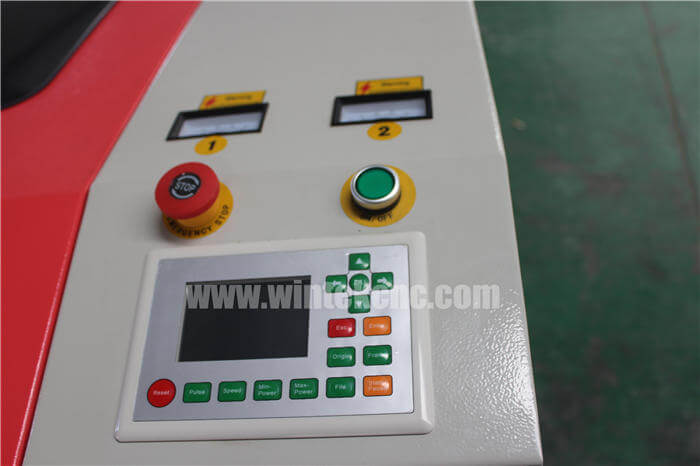

RD6442 controlling system of double heads 1610 CNC Fabric Laser Cutting Machine with Auto Feeding:

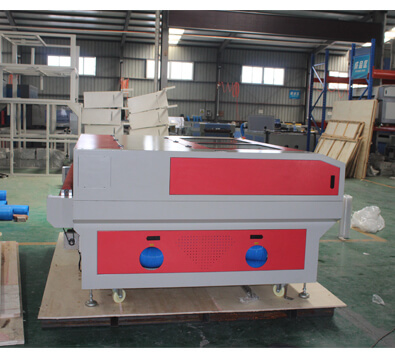

Box details show :
We will provide water chiller CW3000 or CW5000 or CW5200:
Optional parts for choice :

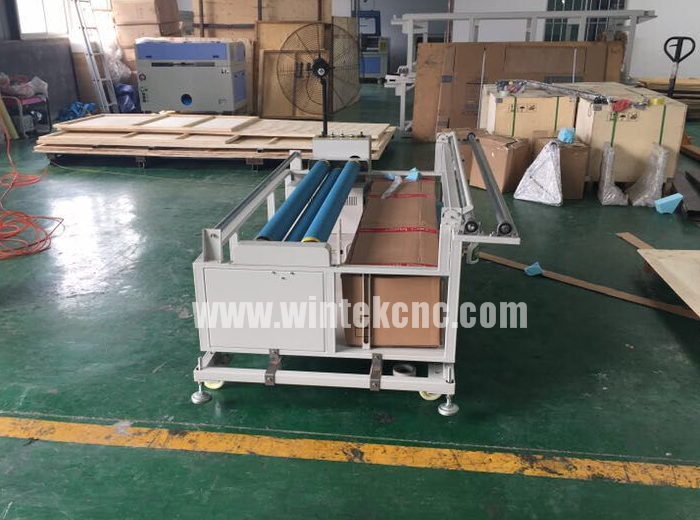

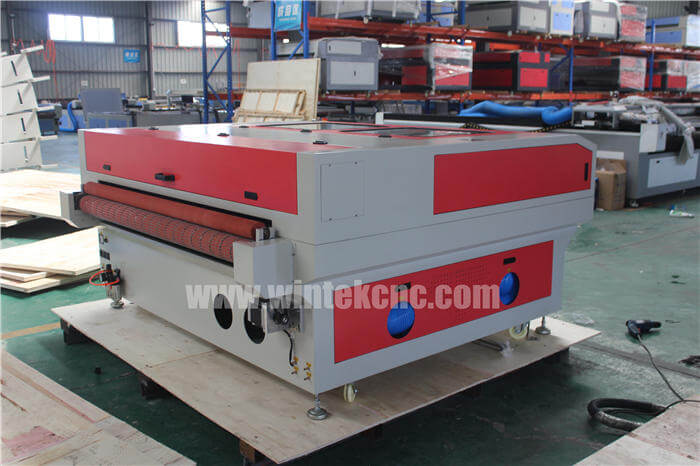

Fabric roller conventor system :

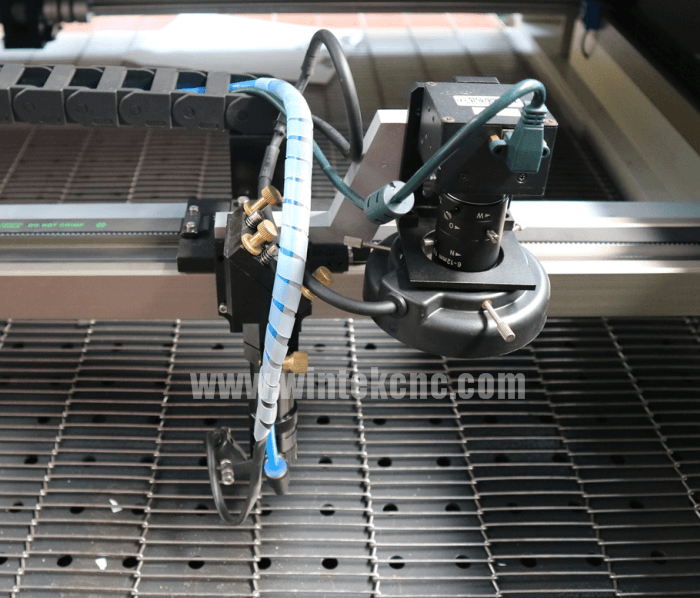

CCD camera for fabric laser cutting machine :
Advantages of wintek double heads 1610 cnc fabric laser cutting machine with auto feeding :
♦No burr/fraying with laser cutting:
Laser cutting is done by high temperature process. It can make cut edge to close up automatically. So, no need to recut the patterns after one-time cutting.
♦No distortion to the processed fabric:
In the process of cutting, laser dose not touch the processed fabric, but laser beam works on the fabric.
♦High precision:
Diameter of the laser beam can be focalized into 0.1mm (we adopt top lens imported from world famous company II-VI-INFRARED).
Cutting is done exactly according to uploaded graphics through computer control.
♦High efficiency and easy operation:
Just upload the graphics into the cutting machine and laser will cut fabric into shapes as designed.
Samples of fabric laser cutting :
If you like this Double heads 1610 CNC Fabric Laser Cutting Machine with Auto Feeding System,
please feel free to contact us.
