Model: WTJ-1410 Category: Co2 Laser Engraving Machine
USD
2300$-3800$ FOB Qingdao
Wintek 1410 co2 laser engraving cutting machine is suitable for engraving and cutting many nonmetal materials, such as wood, mdf, acylic, pvc,leather,paper and so on.
Application of 1410 co2 laser engraving cutting machine :
Cutting and engraving nonmetal materials, such as all sorts of clothing, leather, carpet,
suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics, acrylic, MDF,wood, pvc etc.
|
Material |
Cut |
Engrave |
|
Acrylic | Plexiglass | PMMA | Perspex |
√ |
√ |
|
Organic board | Double color sheet |
√ |
√ |
|
Wood | Plywood | Veneer | MDF | Balsa |
√ |
√ |
|
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather |
√ |
√ |
|
Fabric | Cloth | Textile |
√ |
√ |
|
Carpet | Mat | Rug | Wool Felt |
√ |
√ |
|
Paper | Cardboard | Chipboard | Press Board |
√ |
√ |
|
Ceramic | Tile | Marble | Glass |
√ |
√ |
|
Plastic |
√ |
√ |
|
Fiber Glass | Filter Cloth |
√ |
√ |

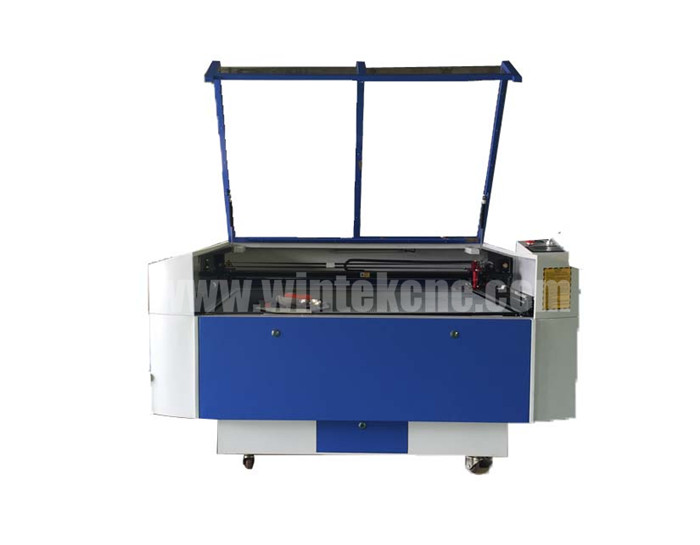

Description of 1410 co2 laser engraving cutting machine :
Optional parts of 1410 co2 laser engraving cutting machine :
1. Up-down table, for big thickness materials
2. Rotary
3. Auto feeding system, for fabric and garment cutting with high working efficiency.

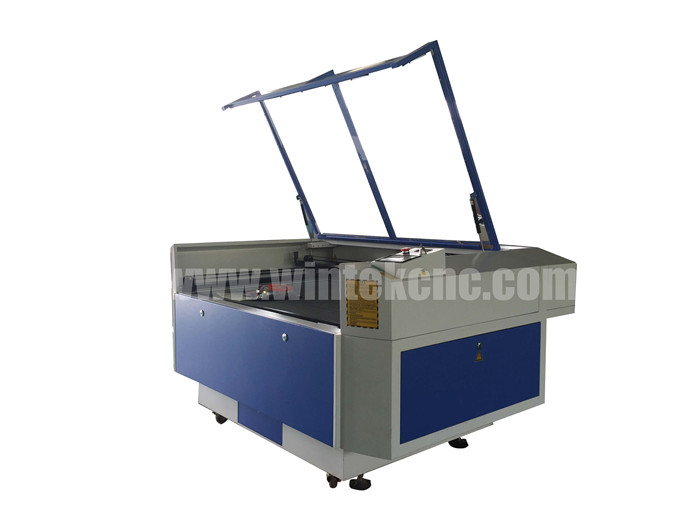

Simple introduction for 1410 co2 laser engraving cutting machine :

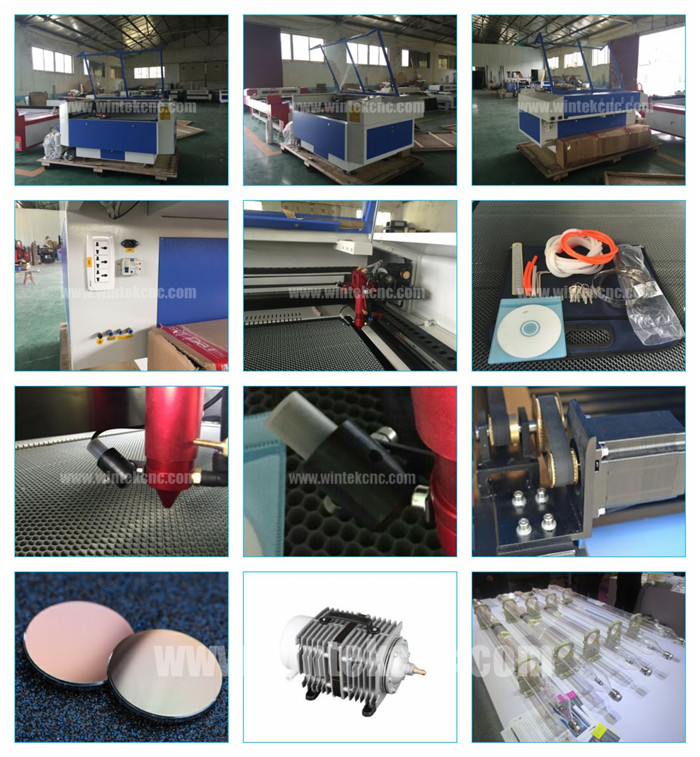

Machine details of 1410 co2 laser engraving cutting machine :
Technical parameter of 1410 co2 laser engraving cutting machine :
|
NO. |
Description |
Parameter |
|
1 |
Model |
WTJ-1410 |
|
2 |
Engraving area |
1400*1000mm |
|
3 |
Laser power |
60w 80w 90w 100w 130w 150w |
|
4 |
Engraving speed |
0-36000mm/min |
|
5 |
Cutting speed |
Difference material difference speed |
|
6 |
Resolution ratio |
0.03mm |
|
7 |
Power supply |
110V/220V±10% 50/60Hz |
|
8 |
Positioning speed |
20m/min |
|
9 |
Operating system |
RD6442 control system or Leetro control system |
|
10 |
Working table |
Blade table or honeycomb table |
|
11 |
Table control mode |
Manual / Electric |
|
12 |
Max engraving speed |
1000mm/s |
|
13 |
Max cutting speed |
600mm/s |
|
14 |
Locating Precision |
<0.01mm |
|
15 |
Min shaping character |
Character 2×2mm, Letter 1×1mm |
|
16 |
Resolution |
0.0125mm |
|
17 |
System Environment |
WINDOWS XP/ WIN7/8/10 |
|
18 |
Graphic file format |
BMP,PLT,AI,DCR,DXF |
|
19 |
256 color separation output |
Support |
|
20 |
Off-line working |
Support |
|
21 |
Cooling system |
Water chiller cw3000 |
|
22 |
Water protecting sensor and alarm |
Yes |
|
23 |
Net weight / Gross weight |
290KG / 320KG |
|
24 |
Machine size / Packing size |
1990*1440*1070mm/ 2050*1500*1360mm |
