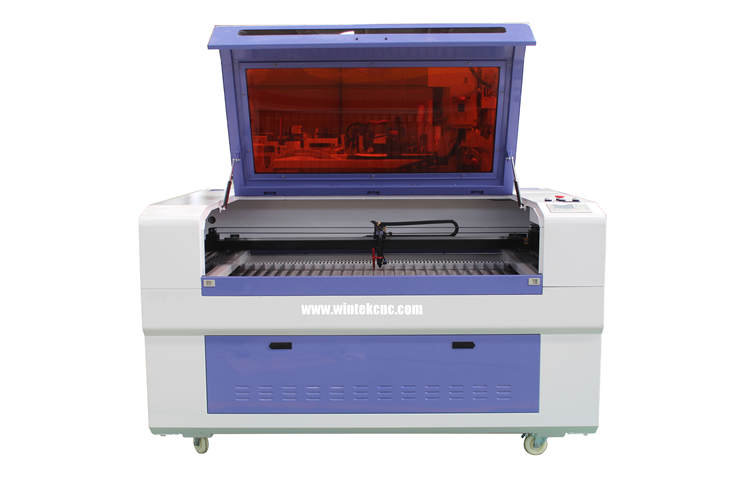

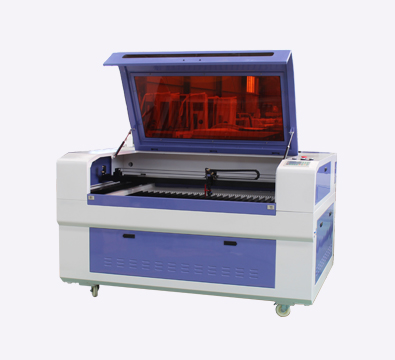

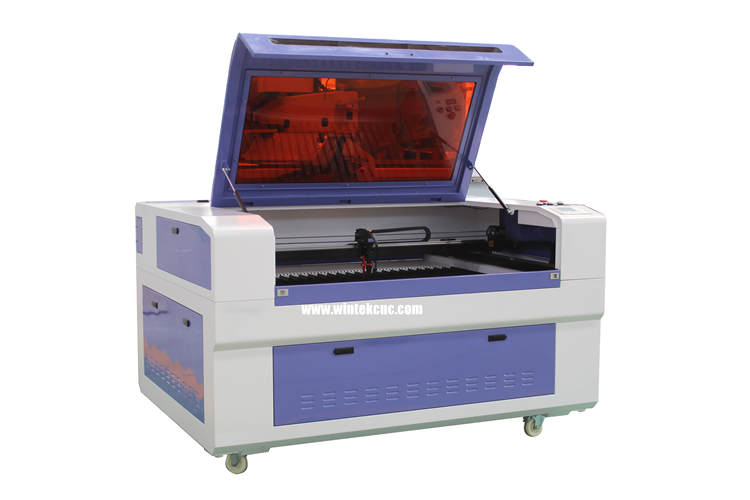

Model: WTJ1390 Category: Co2 Laser Engraving Machine
USD
2650$-3500$ FOB Qingdao
Co2 laser engraving machine can help you engrave wood,plywood,mdf,paper,leather,marble,stone,textile,fabric and so on.
Machine standard configuration of laser engraving machine:
# Working size: 1300*900mm ( larger or smaller can be choosed according your material )
# Laser tube: 80W CO2 laser tube ( have optional power and brand )
# Control system: Redcam control system
# Lens: Singapore focus and reflection lens

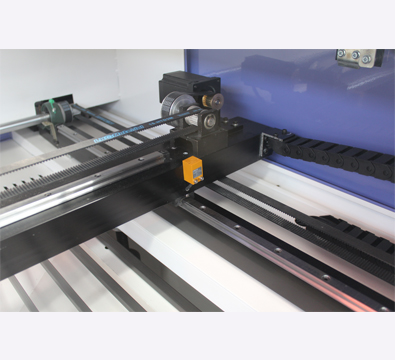

# Guide rail: Taiwan HIWIN linear rail guide
# Cooling system: CW3000 water chiller ( CW5000/CW5200/CW6000 optional )
# Table: Aluminum blade or honey comb table can choose
Optional parts:
# Electronic up and down work table
# Automatic focus system
# Rotary device
# Camera
|
Machine type |
WTJ1390 |
|
Working area |
1300*900mm |
|
Laser tube type |
CO2 sealed glass laser tube |
|
Control System |
Redcam control system |
|
Cooling type |
CW3000 water chiller |
|
Laser Power |
60W/80W/100W/130W/150W |
|
Lens |
Singapore focus and reflection lens |
|
Guide rail |
Taiwan HIWIN linear rail guide |
|
Resolution ratio |
4500dpi |
|
Least moulding character |
1.0X1.0MM english |
|
Max work speed |
600mm/s |
|
Function |
Cut and Engrave |
|
Front and rear delivery function |
Have |
|
Weight |
300kg/360kg ( net/gross ) |
|
Package |
Veneer case |

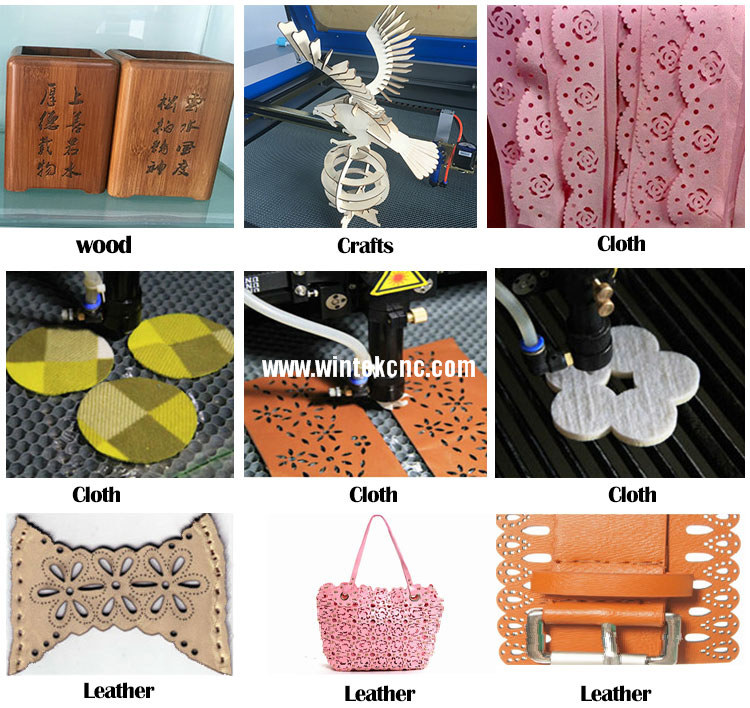

Applications of laser engraving machine :
1) acrylic ,Cloth, tile, cardboard, paper, leather, PU leather, logo embroidery, plastic, rubber, wood
2) leather animals, shells, double color boards, bamboo
3) ABS board, PVC board, fiber and composite materials and other non-metallic materials
4) Shoes, leather clothing, brand processing, embroidery, advertisement decoration, wood processing
5) packaging and printing, laser knife mold, decoration decoration industry, craft,toys
Different power will cut different thickness :
|
|
25W |
40W |
60W |
W2(90W) |
W4(130W) |
W6(150W) |
W8(180W) |
|
Acrylic |
1mm |
3mm |
8mm |
12mm |
15mm |
20mm |
25mm |
|
Plywood |
|
0.5mm |
5mm |
8mm |
10mm |
15mm |
20mm |
|
MDF |
|
0.5mm |
4mm |
7mm |
9mm |
10mm |
15mm |
Package of laser engraving machine :
Advantage of WINTEK CO2 laser engraving machine :
1. High stability laser tube,high quality lens and mirror,long life-span.
2. Automatic up&down table design satisfies the customers need of engraving thick materials.
3. Adopt advanced Ruida control system and easy to operate, international standard laser power supply,USB interface output can support off-line working.
4. Strong software function,compitable with Coreldraw,Autocad and so on.
5. Auto focus system,water pump,air pump and rotary attachment are optional.
