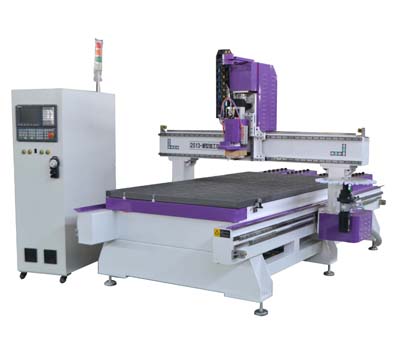

Model: WTM1325-ATC Category: ATC CNC Router
USD
12000$-21000$ FOB Qingdao
ATC CNC Router with automatic tool changer spindle is a good choice for woodworking,3d wood carving,mdf engraving,mdf cutting and suitable for many industries, such as advertising industry,furniture industry,mold industry and so on.
Application of ATC CNC Router with automatic tool changer spindle for sale :
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
Standard configurations of ATC CNC Router with automatic tool changer spindle for sale :
1. 9KW air cooling auto tool change spindle, imported Italian HSD spindle motor optional(air cooled spindle 18000 rev/min)
2.Taiwan's high-precision H25 linear guide
3.Yaskawa servo motors, drives
4. Intelligent ATC system,change tools fast and easily.more time-saving safety. can add 6 tools, 8 tools or 10 tools (Optional inline type ATC)
5.Vacuum inhaling table,largely improved working efficiency.
6..Industry steel square tube structure lathe.
5.High quality X,Y,Z ball screw or high accuracy gear rack transmission system,imported linear square rails.
7.X,Y,Z high quality dust cover, effectively prevent dust come into the inside of machine.
7. Professional CNC control system,compatible with many CAM software such as Type3,artcam,wentai.
8.Auto oil lubricator, dust hood,self-lubrication,tool length measure, push up pins
Details show of ATC CNC Router with automatic tool changer spindle for sale :

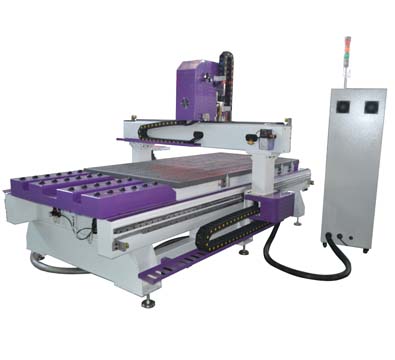

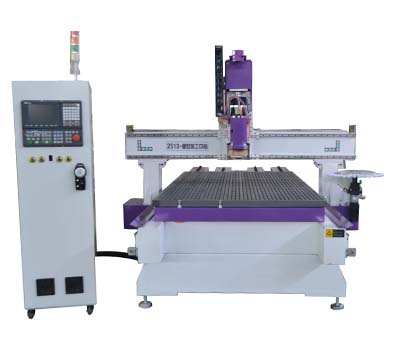

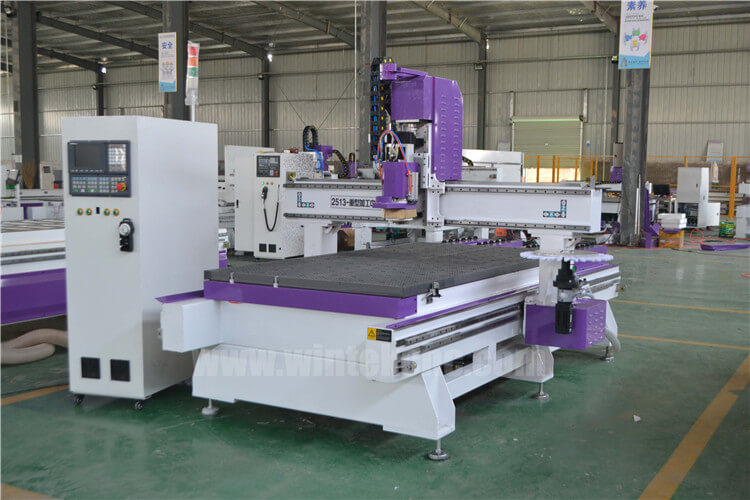

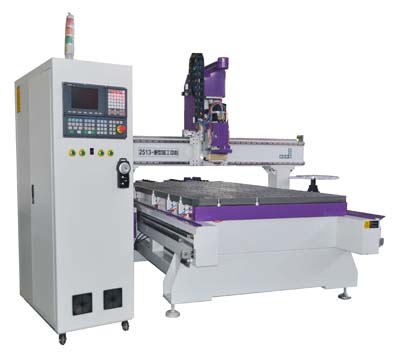

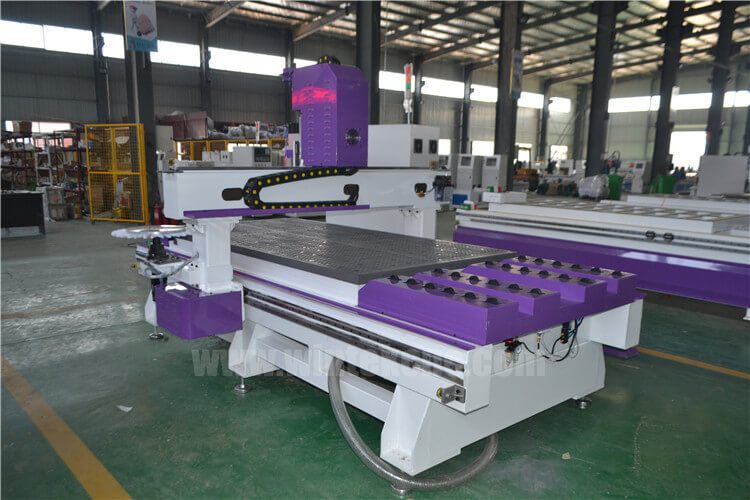

1). Heavy duty structure :

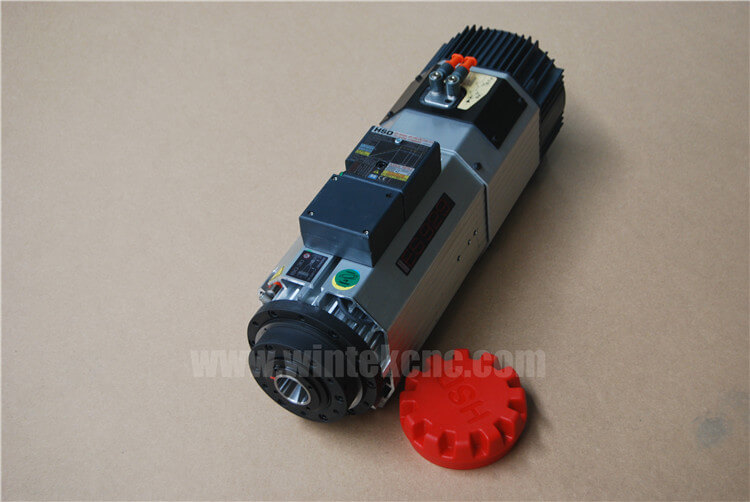

2). 9.0kw Italy HSD spindle with ATC :

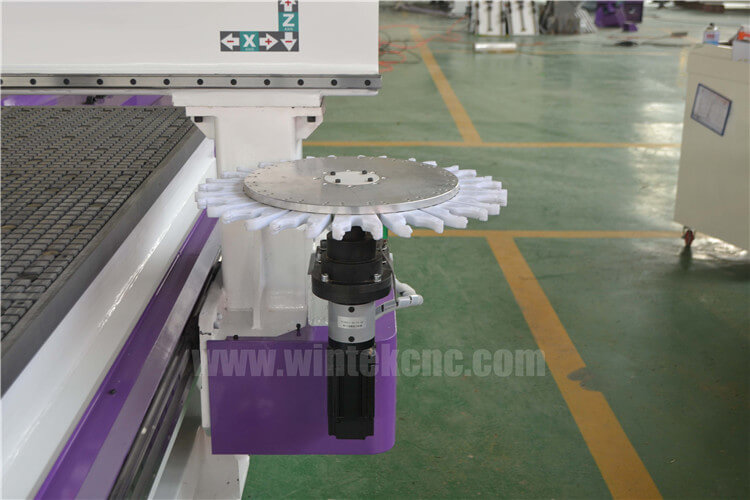

3). Carousel ATC system of ATC CNC Router :

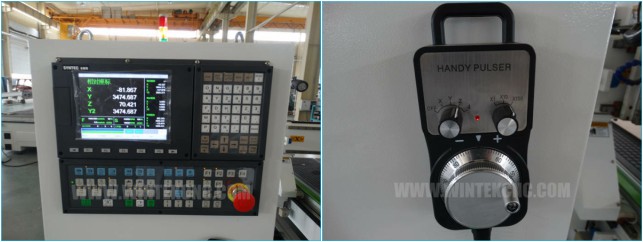

4). Syntec controlling system with hand wheel :

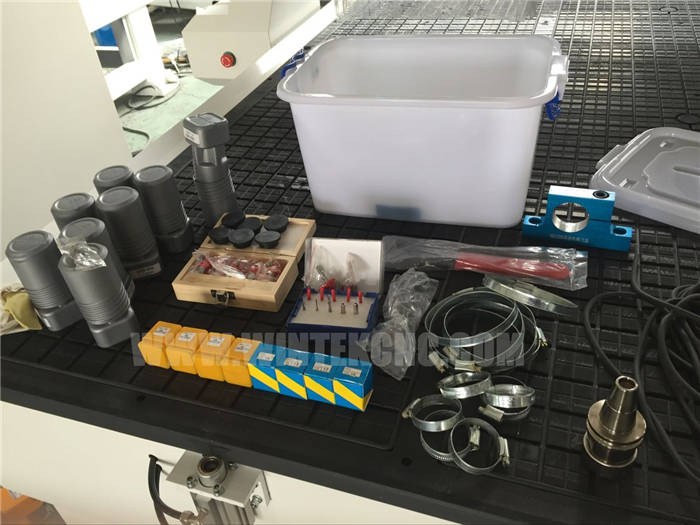

5). Woodworking tools for ATC CNC Router with automatic tool changer spindle for sale :
Samples of atc cnc router with automatic tool changer spindle for sale :
Technical parameter of atc cnc router with automatic tool changer spindle for sale :
|
Number |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm |
|
2 |
Other size |
Can be customized |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
5 |
Table Surface |
Vacuum and T-slot working table |
|
6 |
Frame |
Welded Structure |
|
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
|
8 |
Z Structure |
Hiwin Rail Linear Bearings and TBI Ball Screw |
|
9 |
Max. Power Consumption |
(Without Spindle) 3.2Kw |
|
10 |
Max. Rapid Travel Rate |
33000mm/min |
|
11 |
Max. Working Speed |
25000mm/min |
|
12 |
Spindle Power |
9kw Italy HSD ATC air cooling spindle |
|
13 |
Spindle Speed |
0-24000RPM |
|
14 |
Drive Motors |
850W Japan YASKAWA servo motor |
|
15 |
Working Voltage |
380v, 3 phase, 50/60HZ (Option: AC220V/50/60Hz,3PH) |
|
16 |
Command Language |
G Code |
|
17 |
Operating System |
Taiwan SYNTEC 4 axis control System |
|
18 |
Computer Interface |
USB |
|
19 |
Optional |
Japan shimpo reducer,Becker vacuum pump,dust collector |
|
20 |
Collet |
IOS30 |
|
21 |
X,Y Resolution |
<0.01mm |
|
22 |
Software Compatibility |
Type3/UcancameV9 Software, (Option: Artcam Software) |
|
23 |
Running Environment Temperature |
0 - 45 Centigrade |
|
24 |
Relative Humidity |
30% - 75% |
