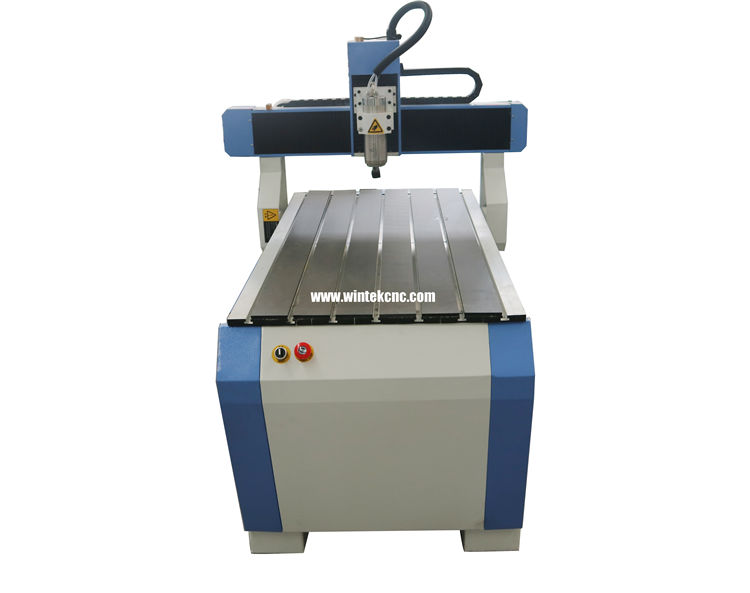

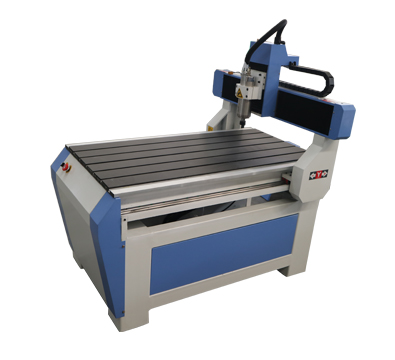

Model: WTM6090 Category: Advertising CNC Router
USD
1850$-2500$ FOB Qingdao
Small wood cnc router machine also can engrave and cut plywood,mdf,acrylic,aluminum,plastic,stone,marble,soft metal. It is used for advertising industry and woodworking industry.
Machine feature of small wood cnc router machine for sale:
1. Small body, takes just little space.
2.Popular in art and crafts industry.
3.Taiwan TBI ball screw for X, Y, Z axis
4.With water tank and cutter cooling system, this machine can process machine material such as stone, wood, acrylic, plastic, metal, and so on.
Functional Characteristics of small wood cnc router machine:
1) Imported ballscrew from Taiwan and imported linear square orbit.
2) Performance in continuing engraving after point and blade breaks.
3) Special saving mode of different points.
4) The cutting with large power spindle does not only increase the fineness of engraving but also cut into 2 cm freely.
5) It is mainly used for the funiture making, sign making, crafts making, architecture mould, identity industry, school, enterprise and government.
Application of Small wood cnc router machine
It is widely used in processing wood, acrylic, dual color board, plastic, stone, glass, metal (aluminum, brass, stainless steel), wood, acrylic, dual color board, plastic, stone, glass as well as many other nonmetal materials, and can do perfect 2D/3D carving or cutting.
Videos of Small wood cnc router machine:
Technical Parameters of small wood cnc router machine for sale:
|
Machine NO |
WTM6090 CNC Router for wood |
|
X Y Z Traveling Area |
600*900*150mm |
|
Table Structure |
Aluminum T-slot with stainless steel water tank |
|
X Y Z Transmission |
Taiwan TBI Ball Screws |
|
X Y Z Guide Rail |
Square Rail |
|
Spindle Power |
1.5kw(2.2kw or 3.2kw for option) |
|
Max Spindle Speed |
24000r/mm |
|
Max Traveling Speed |
7200mm/min |
|
Max Working Speed |
5000mm/min |
|
Processing Accuracy |
±0.025mm |
|
Reposition Accuracy |
≤0.025mm |
|
Driving System |
Stepper Motor(Servo Motor for option) |
|
Command Language |
HPGL, G Code |
|
Operation System |
Mach3/DSP/ Ncstudio |
|
Working Voltage |
AC220V 50Hz or custom made |
|
Net Weight /Gross Weight |
300KGS /350KGS |
Details of Small wood cnc router machine for sale 6090:

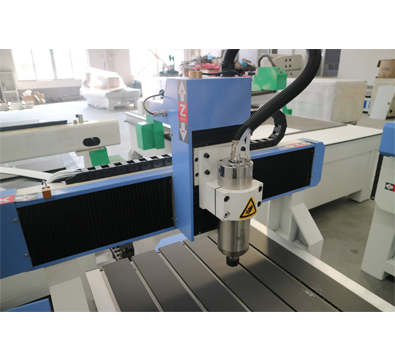

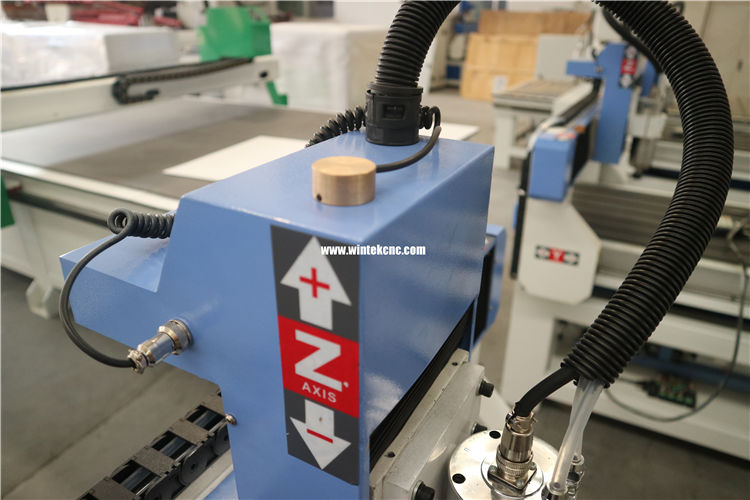

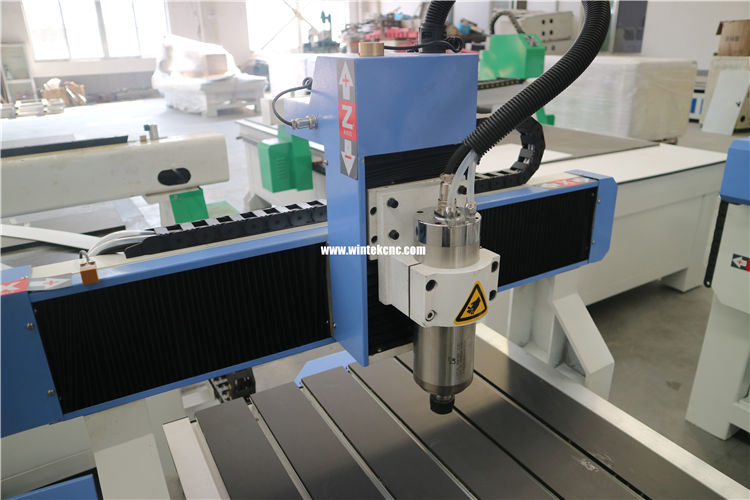

1. 1.5kw water cooling spindle / X axis with dust protector:

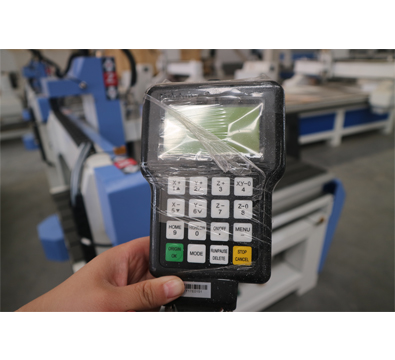

2. Richauto DSP A11 controlling system. Nc-studio /mach3 controller is optional.
3. Tool sensor :
4. Taiwan Hiwin Square rails :

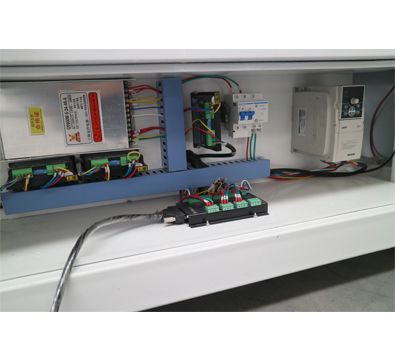

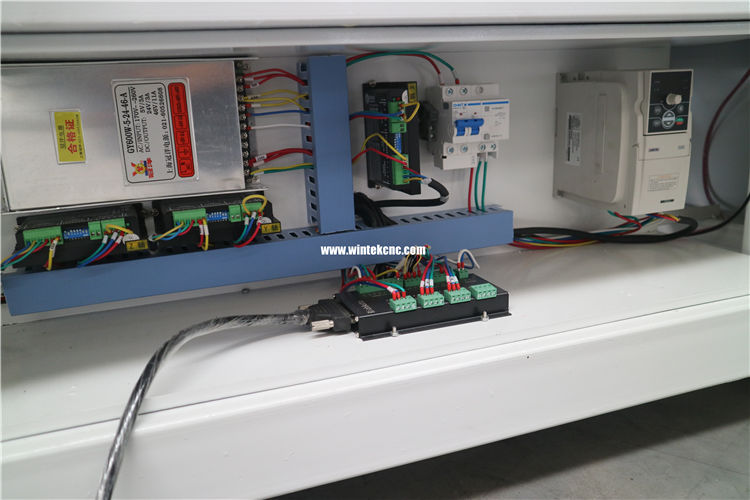

5.Electronic box (inverter,leadshine driver are inside) :

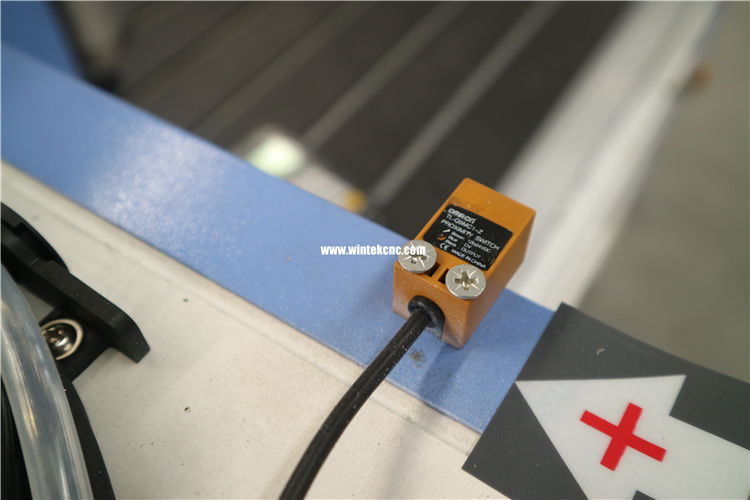

6. Omron Limit switch :
