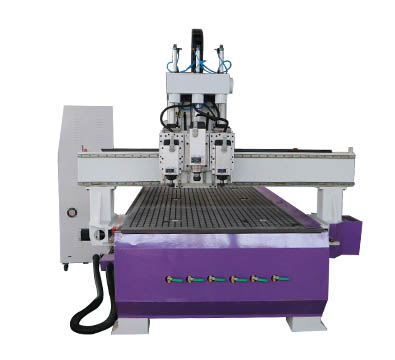

Model: WTM1325-3 Category: Multiheads CNC Router
USD
USD 5800$-7800$ FOB Qingdao
This three heads 3d cnc router belongs to a simple auto changing tools cnc router, it can change 3 pieces cutters automatically and is suitable for producing wood doors.
Videos of thee heads 3D cnc router machine:
Features of Multi Head three heads 3D CNC Router:
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with thick steel.
3. Equipped with 3.5KW air cooling spindle, can be optional air cooling spindle, more powerful, enough to cut more thickness materials.
4.The pressing handle oiling system, just pushing the handle then can realize the whole machine oiling,very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Original Ncstudio V9 control system, can be optional DSP control system.
7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.
9.Function of re-carving after break point and power off, reducing the materials wasting.
10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Applications of three heads 3D CNC Router:
1. Furniture industry: Cabinet, doors, solid wood, panel and windows
2. Wood industry: Speaker box, game cabinets, computer tables, sewing machine tables, musical instruments
3. Decoration industry: Screen, wave board, large wall hanging, advertising board, marking making

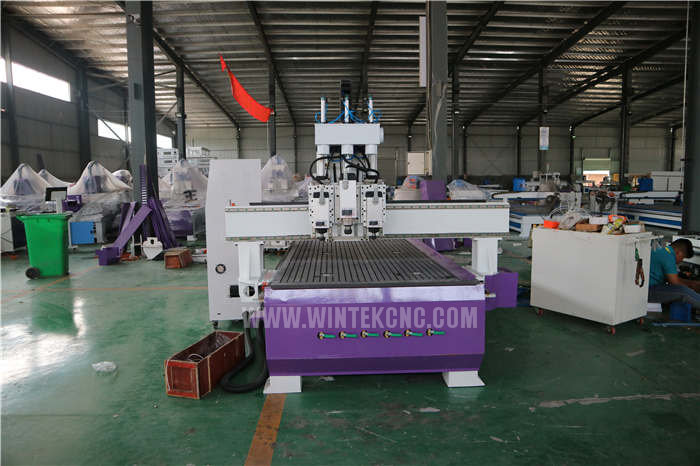

Machine show :

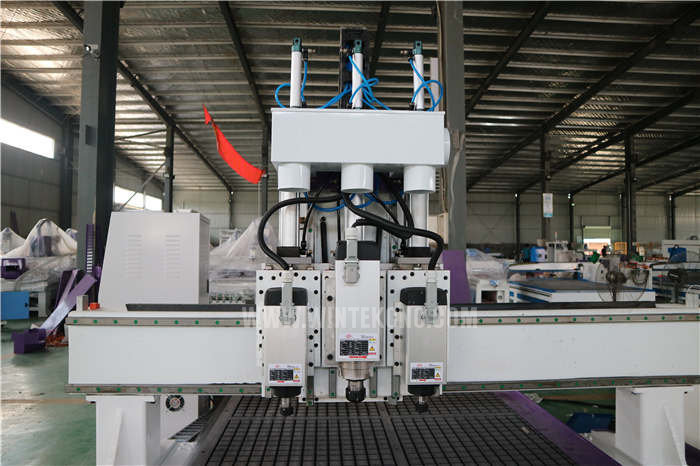

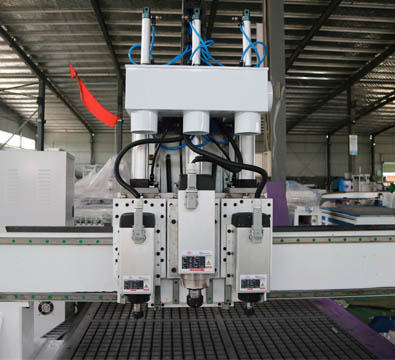

1--3.5kw CS air cooling spindle :

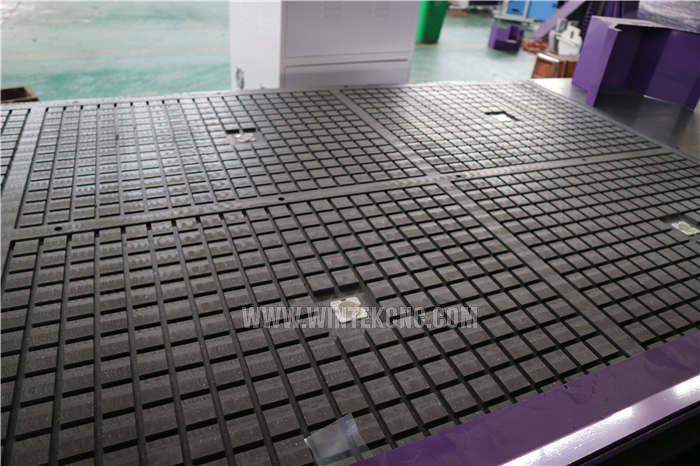

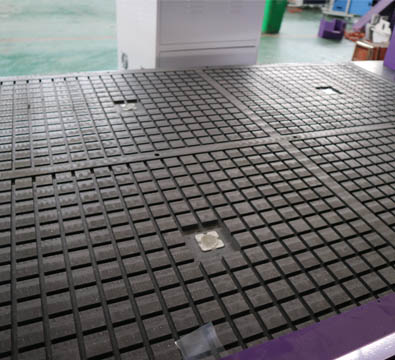

2.Vacuum table of three head 3d CNC Router Machine:

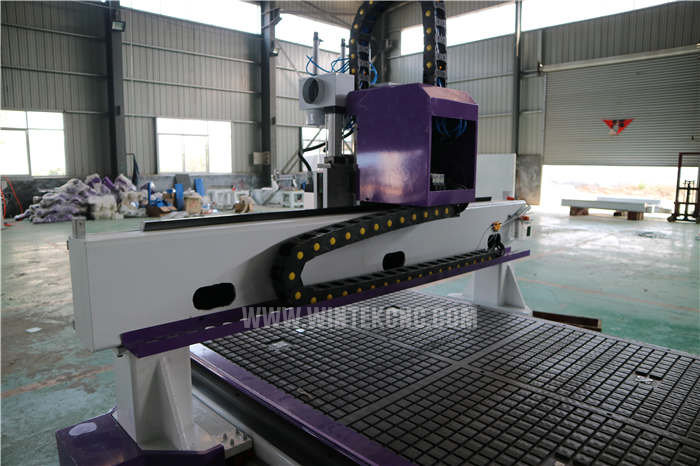

3.Strong gantry of three heads 3d cnc router machine :

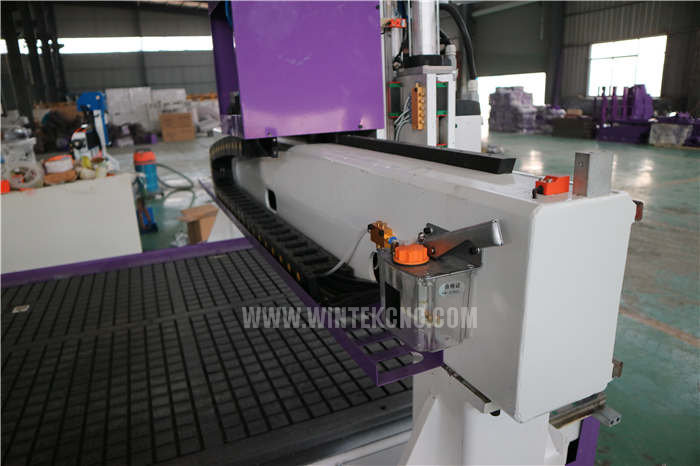

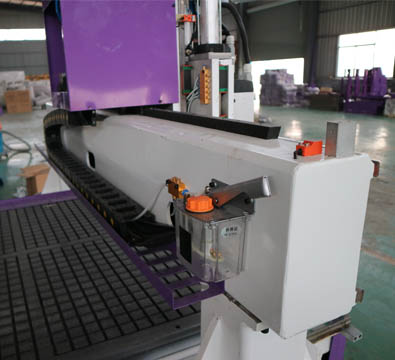

4.Munual lubrication system of three heads 3d cnc router machine :

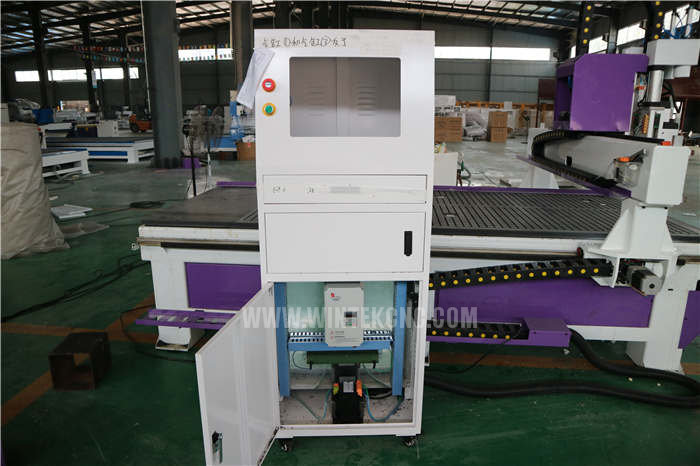

5. Controlling box of three heads 3d cnc router machine :

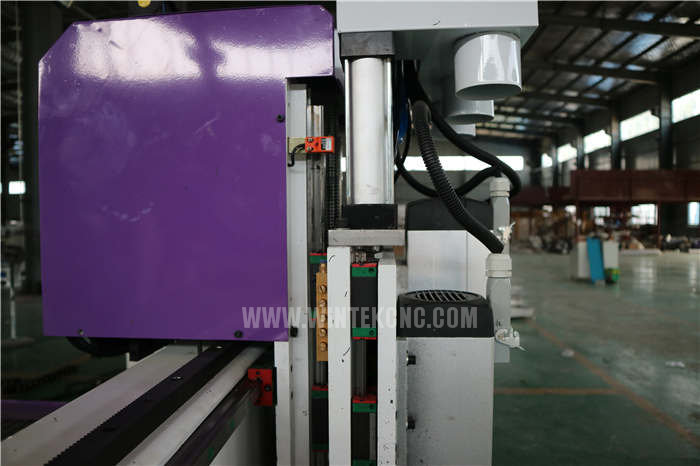

6.z axis transmission of three heads 3d cnc router machine :
Advantages of three heads 3D CNC Router machine:
1. Integral frame, strong stiff, high intensity, non deformation under long time load
2. Wintek machines configured with constant power inverter-driven spindle motor cooled by water, high cutting intensity, prolong lifetime of tools
3. All axis adopt linear square guide rail, double row and four column ball slider, big bearing capacity, running smoothly
4. Optimization of mechanical and electrical design, adopt most advanced professional controlling system and code format, processing with high speed and precision
5. Adopts Original NC-studio V9 controlling system, is more stable than DSP and other copy controller.
Technical Parameter of three heads 3d cnc router machine :
|
Model |
WTM1325-3 |
|
X,Y,Z axis working area |
1300*2500*200mm |
|
Whole structure |
Welded Steel gantry structure |
|
Table surface |
vacuum table with 5.5KW vacuum pump |
|
X,Y,Z structure |
Taiwan PMI/HIWIN Square linear guide rail |
|
X,Y structure |
Rack and pinion transmission, high speed and more stable; Y -double motor drive |
|
Z structure |
Imported ball screw, high precision |
|
Max. idling speed |
50m/min |
|
Max. working speed |
25m/min |
|
Repositioning Accuracy |
±0.05mm |
|
X Y Z working Accuracy |
< 0.02mm |
|
Spindle |
3.5KW cs air cooling spindle(Optional: water cooling spindle) |
|
Spindle rotating speed |
0-18000rpm/min |
|
Diameter of tools |
Φ3.175 -Φ20 |
|
Collect size |
ER 25 |
|
Operation language |
G code (plt, mmg, uoo, bmp) |
|
Driving system |
stepper motor (servo motor optional) |
|
Operating system |
Ncstudio V9control system |
|
Working voltage |
380V/3phasev 50/60HZ |
|
Software |
UcancamV8 / Type3 / Artcam software (option) |
Samples of three heads 3d cnc router machine :
