Model: WTM1530 Category: Wood CNC Router
USD
4300-$6200 USD
This heavy duty Cheap China cnc wood carving machine,wooden door design cnc router machine a good choice for furnituer industry.
-------Technical Parameter-------
|
NO. |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm Cheap China cnc wood carving machine,wooden door design cnc router machine |
|
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
|
3 |
X,Y,Z repositioning Accuracy |
±0.05mm |
|
4 |
Table Surface |
T-shot table / Vacuum table optional |
|
5 |
Frame |
Heavy duty Square pipe Welded Structure |
|
6 |
X, Y axis transmission |
Precision gear rack |
|
|
Z axis transmission |
Tawain TBI ball screw |
|
7 |
Max. Travalling speed |
40000mm/min |
|
8 |
Max. Working Speed |
20000mm/min |
|
9 |
Spindle Power Motor |
4.5KW air cooled spindle / water cooling spindle optional 2.2kw, 3kw,5.5kw,7.5kw, 9kw optional |
|
10 |
Spindle speed |
0~18000RMP/MIN |
|
11 |
Drive Motors |
Stepper motor and leadshine driver Japanese Yaskawa servo motor and driver 750W optional |
|
12 |
Working Voltage |
AC380v |
|
13 |
Command Language |
G code |
|
14 |
Operating System |
DSP A18 (support 4 axis) |
|
15 |
Interface |
USB |
|
16 |
Flash Memory |
128M( U Disk) |
|
17 |
X,Y Resolution |
<0.01mm |
|
18 |
Software Compatibility |
Artcam software |
|
19 |
Running Environment |
Temperature: 0℃~45℃ |
-------Machine Details-------
1. 4.5kw CS air cooling spindle (power is optional) :
Air cooled spindle is more suitable for woodworking than water cooled one with higher cutting speed and higher precision.
It can meet all kinds of high precision engraving mand. Italy HSD spindle is optional.
2. Richauto DSP A11 controller (NK105 DSP / Mach3 / Nc-studio controlling system is optional )
A11 can work without computer, is easy to learn and operate.
3. Strong gantry and machine structure
It can keep a stable running performance and no shake when machine working.

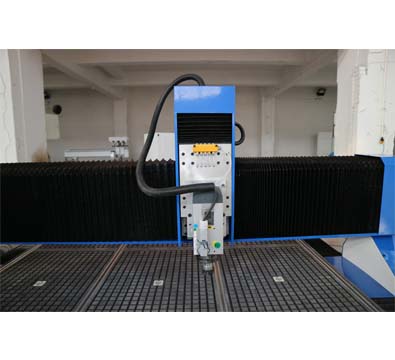

4.Full dust protector system:
It can prevent dust and debris dropping on the rails, can keep rails clean and let machine running more smoothly.

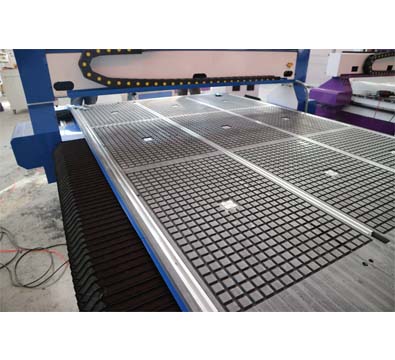

5. T-slot and vacuum table:
Packaging and shipping Details:
Totally have 3 layers for package. Keep machines are waterproof and safe.
There have many different models for your choice :
