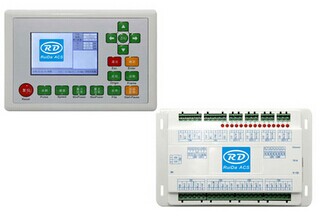

Model: RDC6442G Category: CNC Laser Parts
USD
200$-350$
RDC644XG system is the lastest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure.Many co2 laser machine adopts RDC6442G controlling system.
Technical Parameters:
1.Digital laser control signals:
(1) TTL level output, 50 mA,drive capability（can set enable signal polarity in software）
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
2.Motor control signal:common-anode output, drive capability 20 mA
Motor control pulse frequency: Max.500KHZ
3.USB: Max. transmission rate 12M bps; The longest distance is 5 meters.
4.Network:Max. transmission rate is100M; Max. transmission distance is 200M.
5.Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
6.Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability
(with follow-current protection)
7.Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level

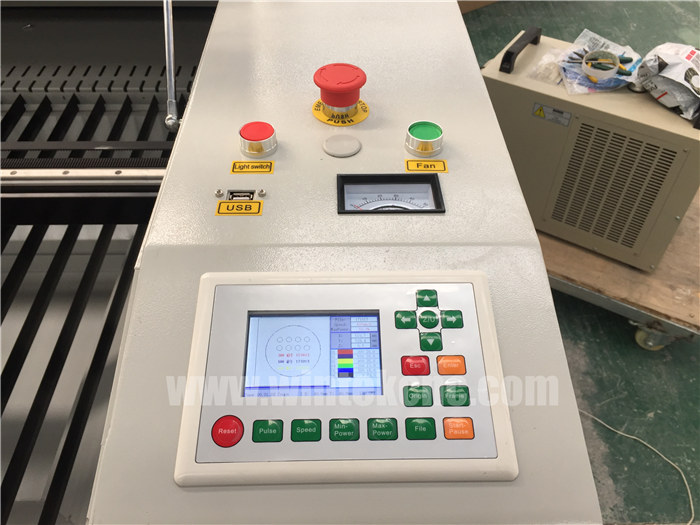

laser engraving cutting controller RDC6442G on Co2 Laser Machine :
