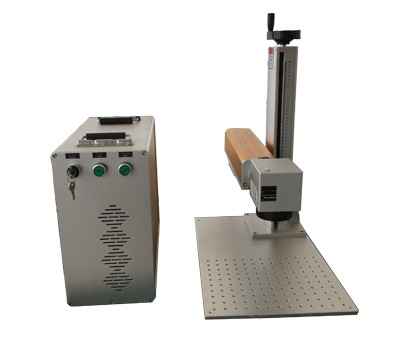

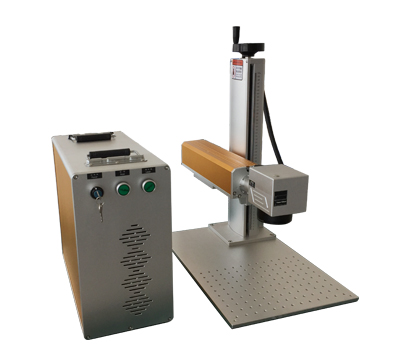

Model: WTJ-20F Category: Fiber Laser Marking Machine
USD
4400$-5600$ FOB Qingdao
Portable fiber metal laser marking machine is main for marking on stainless steel,aluminum,brass,jewelry,rings,ect. Accuracy is super good and speed is fast.
Applicable field and material of Fiber Laser Marking Machines :
|
Electronic Components |
Resistance, capacitance, chips, printed circuit |
|
Apparatus And Meter |
Panel signs, precision equipment,etc |
|
Instrument |
Panel signs nameplate, precision equipment,etc |
|
Hardware Tools |
Knives,tools,measuring tools,cutting tools,etc |
|
Automobile Parts |
Piston rings,gears,shafts,bearings,clutch,lights etc |
|
Mechanical Parts |
Bearings,gears,standard parts,motors,etc |
|
Daily Necessities |
Handicrafts,zipper,key holder,sanitary ware,etc |
|
Jewelry Rings |
Jewelry,gold,silver,etc |
|
Food,drinking packing |
Plastic packings,etc |
Specifications of Fiber Laser Marking Machines :
|
Model |
WTJ-10W/20W/30W/50W/75W |
|
Laser power |
10W 20W 30W 50W/75W |
|
Laser wavelength |
1064nm ±10nm |
|
Q-frequency |
20KHz~100KHz |
|
Pules frequency |
20KHz~200KHz |
|
Divergence |
0.3mard |
|
Marking range |
110*110mm/200*200mm/300*300mm |
|
Minimum line width |
0.001mm |
|
Minimum character |
0.1mm |
|
Marking speed |
10000mm/s |
|
Marking depth |
0~0.5mm |
|
Engraving line speed |
≤ 7000mm/s |
|
Repeat accuracy |
±0.001mm |
|
Beam quality |
M2:1.2~1.8 |
|
Marking format |
Graphics, text, bar code,two-dimensional code,automatically marking the date, batch number,serial number, frequency,etc. |
|
Graphic format supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
|
Working voltage |
220V ± 10%/50HZ/4A |
|
Unit power |
<0.5KW |
|
Use of the environment |
Clean and dust free of dust less |
|
Working condition:Humidity |
5%-75%,Free of condensed water |
|
Laser module life |
>100000 hours |
|
The whole life |
More than 15 years |
|
Packing size |
770*250*600*mm |
|
Net weight |
75kg |

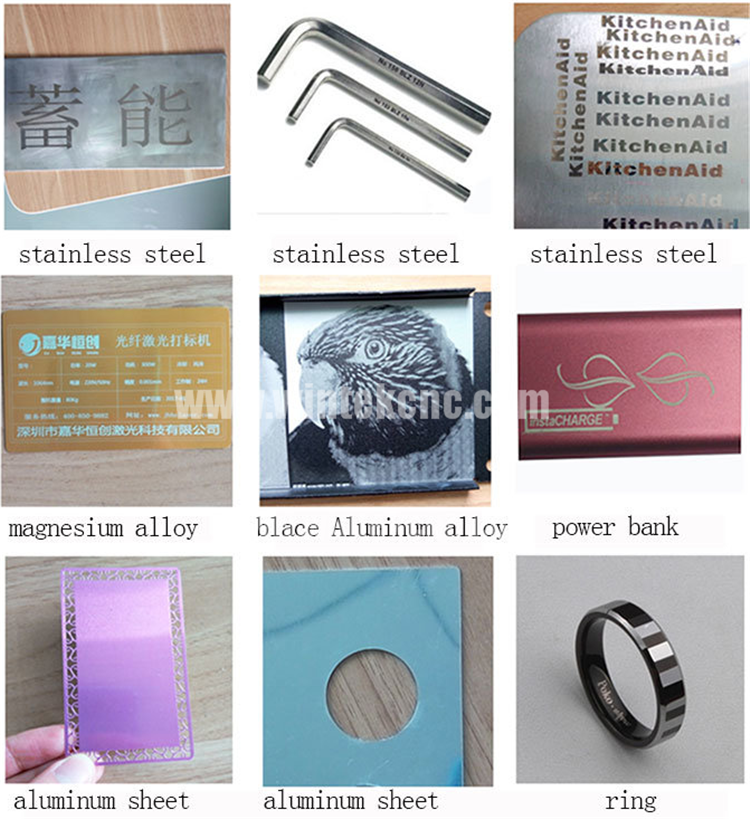

Samples of cheap portable metal laser marking machine :
Main Features :
1. Updating to 3th-generation laser marking machine. High efficiency, high speed, high power density, processing speed is traditional laser 2-3 times.
2. High quality laser path suitable for delicate marking. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
3. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy to control laser dot size, thickness and shape.
4. Air-cooling smart machine size!
Package of cheap portable metal laser marking machine :
