Model: WTS1325 Category: Stone CNC Router
USD
4500-7600$ USD FOB Qingdao
This 3D Tombstone/Marble/Granite/Stone engraving cnc router machine adopts robust structure, powerful spindle motor, precise and efficient control system,coming with professional software. It is easy to install and operate.
Applicable Industries of stone engraving 3d cnc router machine :
Suitable for stone materials, tombstone proessing, artistic relief, advertising & decoration, artware industry, etc.
Applicable Materials
Marble, granite, blue stone, sand stone, tile, glass, crystal, artificial stone, tombstone, mile stone, jade, etc, also can for the woodworking materials, metal, adveritising materials processing.
|
Model |
WTS1325 |
|
Working Area |
1300×2500×300mm |
|
Spindle Motor |
4.5 kw water-cooled spindle |
|
Working Mode |
Servo motor |
|
Control System |
Original NCstudio or DSP |
|
Drive Mechanism |
Gear-wheel on x,y axis |
|
Table Surface |
T-slot extrusions& Flume |
|
Frame |
wholly steel structure |
|
Motion Positioning Accuracy |
± 0.03/300mm |
|
Repositioning Accuracy |
± 0.05mm |
|
Max Motion Speed |
80,000mm/min |
|
Max Engraving Speed |
50,000mm/min |
|
Rotating Speed of Spindle |
2,4000rpm |
|
Z-axis setting |
Auto Z origin tool high sensor |
|
Dictate Formate |
G code, *.u00, *.mmg, *.plt |
|
Operating Voltage |
3phase 380v |
|
Software |
Type3 original or Wentai (ArtCUT), ArtCAM software |
Features of 3d Stone engraving cnc router machine :
1.Seamless square steel tube welding for the whole machine, good rigidity, not easy to deformation, T type heavy duty machine structure, good weight bearing capacity, high stability, can bearting the more than 1000kg materials.
2.Adpoting the Taiwan linear square guide rail, double row four columns, large loading capacity, sable operation, higher precision.
3.Big powerful double motor and driver for Y-axis, stable moving for whole machine, fast speed, the traveling speed can reach to 18m/min or more.
4.Big power spindle, greating cutting indensity, high efficiency, lowe noise.
5.The special designed Z-axis structure, increasing the stone relief precision effectively, making the ball screw broken of Z-axis failure rate to the lowest.
6.Using the high precision rack and pinion transmission, higher precision, fast speed and powerful.
7.Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.
8.Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time, getting the more better engraving effect.
9.Continuing working after the break point/power failure, lower the rejection rate.
10. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
Optional items for this machine :
- Servo motors (Taiwan Delta servo motor, Japan Yaskawa servo motors)
- 4th rotary axis, diameter 400mm, working length 1200mm, choose HBS2206 863S70-1000 simple servo system
- Z axis height can be customized

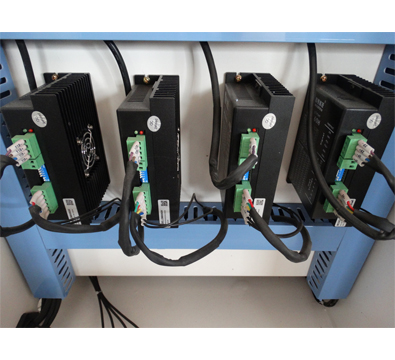

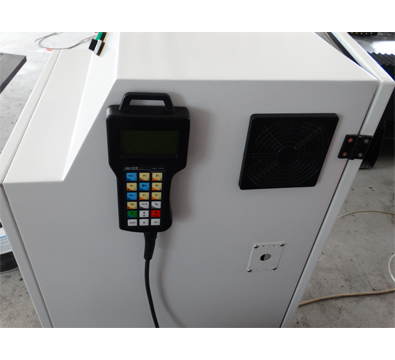

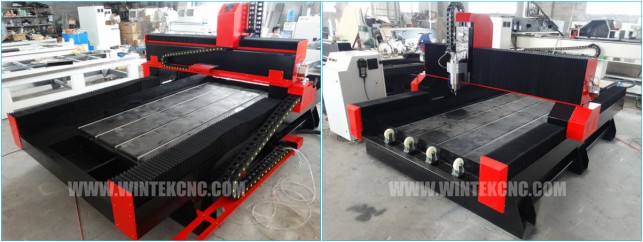

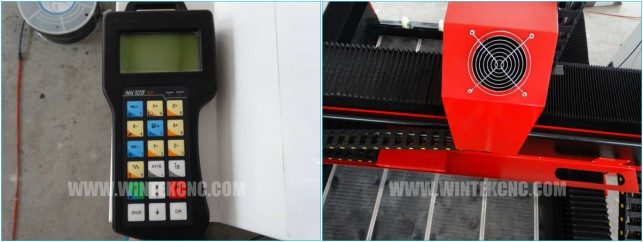

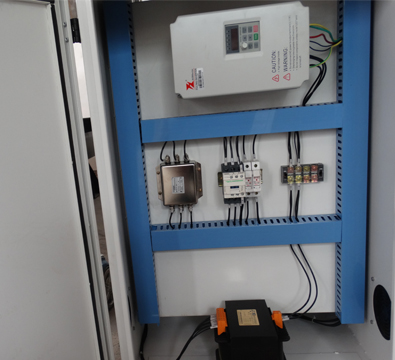

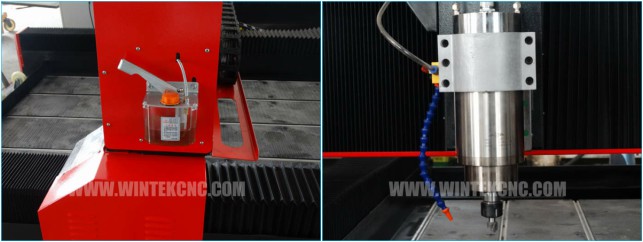

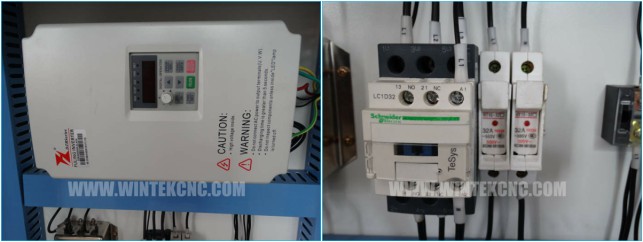

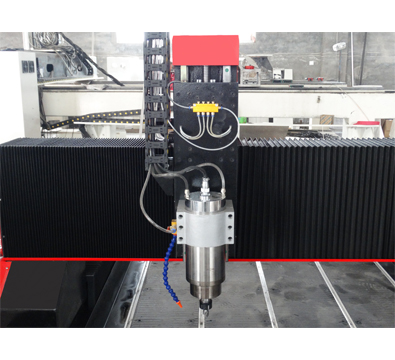

Details of 3d stone engraving cnc router machine :
We have more models for your choice : Stone CNC Router Machine
