Model: WTG-6090 Category: Advertising CNC Router
USD
2100$-2600$
Hobby portable mini cnc router machine 6090 is widely used in processing wood, acrylic, dual color board, plastic, stone, glass, metal (aluminum, brass, stainless steel), wood, acrylic, dual color board, plastic, stone, glass.

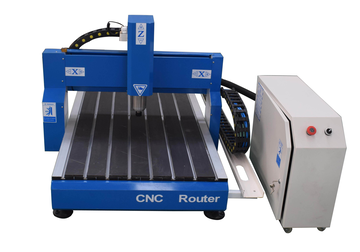

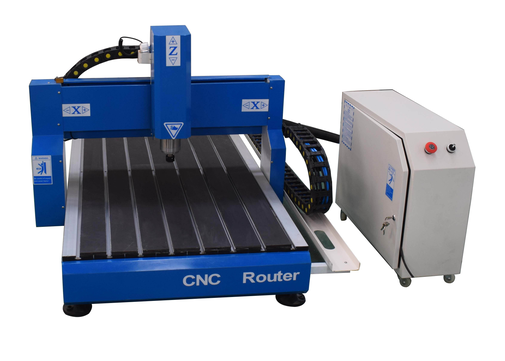

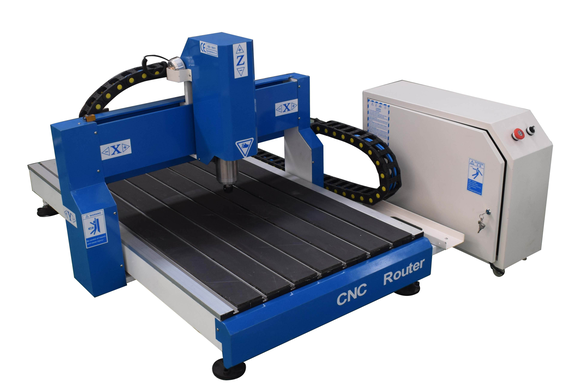

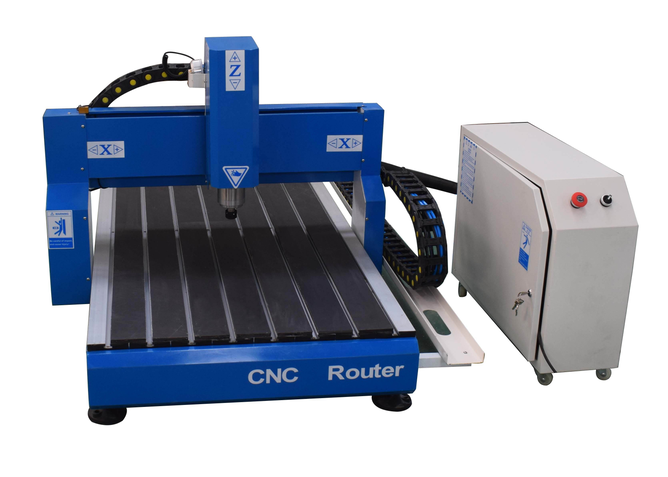

Hobby portable mini cnc router machine 6090
Application Materials of mini cnc router machine 6090 :
It is widely used in processing wood, acrylic, dual color board, plastic, stone, glass, metal (aluminum, brass, stainless steel), wood, acrylic, dual color board, plastic, stone, glass as well as many other nonmetal materials, and can do perfect 2D/3D carving or cutting.

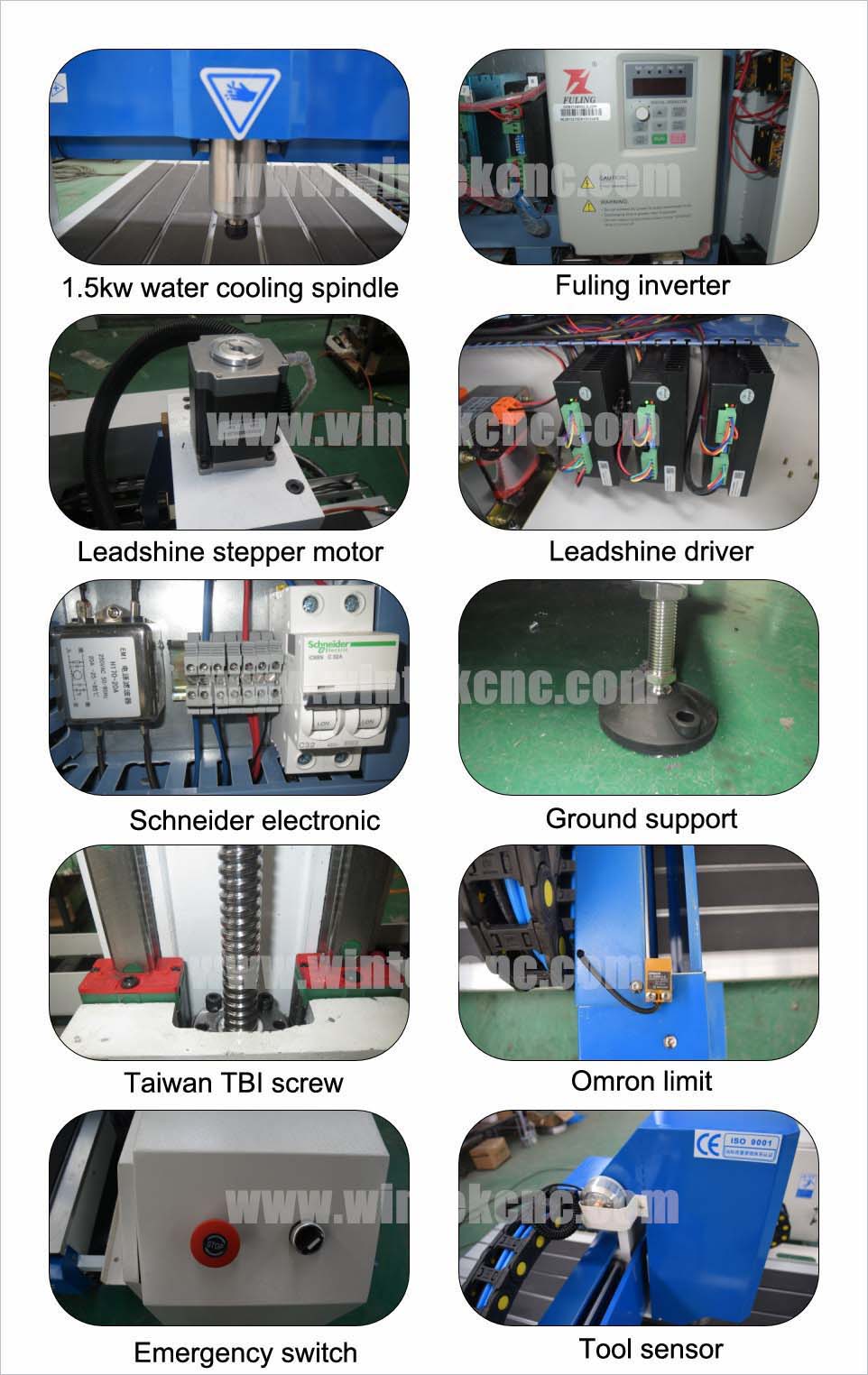

Features of mini cnc router machine 6090:
1.Nomal frame, but no distortion,to ensure the stable,low inertia and no distortion during high speed working.
2.Assembled with original HIWIN linear square guide rail and dual-nuts anti-gap rod ballscrew,and Germany made slanting rack,to ensure high
accuracy,low noise and long life.
3.Adpot high-speed spindle with constant torque,high-performance drive motor to ensure the long time and stable working.
4.Computer control system with friendly UI,with simple operating software, it sis convenient and easy to learn.
Technical Parameter of mini cnc router machine 6090:
|
Model |
WTG-6090 |
|
|
Working area |
X Y Z Axis |
900 mm *600 mm* 200 mm |
|
Working table |
|
Thick T- slot PVC Aluminum platform |
|
Move system |
X Y Z Axis |
XY adopt Taiwan helical gear wheels Z axis adopt Germany neff ball screw |
|
Control system |
CNC System |
NC -Studio / March 3 /DSP |
|
|
Memory |
512M |
|
|
LCD Panel |
3’’ LCD |
|
|
Interface |
USB |
|
Working accuracy |
Moving |
±0.003/300mm |
|
|
Repeat |
±0.003mm |
|
|
DPI |
0.002mm |
|
Working speed |
Max.moving speed |
30000mm/min |
|
|
Max.engraving speed |
20000mm/min |
|
Software Use |
Computer OS |
Windows 98/2000/XP |
|
|
Command |
G-Code/HPGL-3D |
|
Spindle |
Power |
3kw- 6KW |
|
|
Rotary Speed |
0-18000RPM |
|
|
Collect |
ER25-3.175-16 |
|
Power supplier |
AV |
220V/380V , 50HZ /60HZ |
|
Lubrication system |
Thin Oil lubrication |
Auto / Hand |
|
Machine Frame |
Thick material |
Casting / welded structure |
|
Machine Function |
Main work |
Engraving cutting drilling milling |
|
Machine other parts |
Frequency converter |
Fuling / Delta famous brand |
|
Machine supplier |
Motor and driver |
Stepper / Servo motor |
|
Machine Package |
Weight |
370KG |
|
|
Dimension |
1600mm*1300mm*1700mm |
|
Working environment |
Temperature |
+5℃ to + 35℃ |
|
|
RH |
30%-75% |
|
|
Air pressure |
86-106Kpa |
Package of hobby mini cnc router 6090 :
