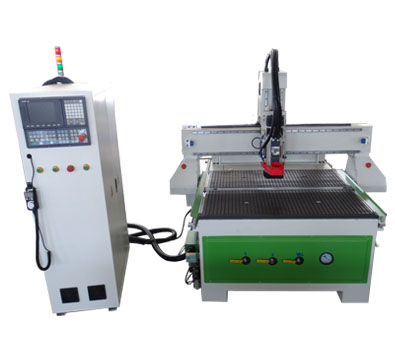

Model: WTM-1212ATC Category: ATC CNC Router
USD
16000-$21000 USD FOB Qingdao
Wintek provides this China 3d woodworking carving machine ATC CNC router for furniture to customer with discount price.
3 Axis ATC wood cnc router, cnc wood router engraving machine for mold , door , cabinet , cylinder is widely used in Acrylic, wood, bamboo, double-color board, PVC board, and other materials. The machine frame is made of strong steel tube structure and it is analyzed and designed with Heavy Duty and Strong Structure which relieves stress and makes working table more steady. The automatic tool changer system, which contains 8 pieces of cutting tools, is controlled by CNC Control system. The tools can be changed very quickly and reliably.
1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials. Including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
6. Label: engraving character, number, and other pattern on label for products and on product directly.
7. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
Technical parameters of ATC wood cnc router :
|
Description |
Parameter :WTM-1212ATC |
|
X,Y,Z working area |
1300x2500x200mm |
|
X,Y,Z Traveling positioning accuracy |
±0.03/300mm |
|
X,Y,Z Repositioning positioning accuracy |
±0.03mm |
|
Lathe bed frame |
Steel square tubes,Lathe bed steel pipe thickness 8mm |
|
X,Y Structure |
Rack drive and Taiwan HIWIN guide |
|
Z Structure |
Germany Ball screw and Taiwan HIWIN guide |
|
Drive motors |
Japan Yaskawa/800w or Panasonic/750w Servo motors |
|
Table surface |
T-slot or vacuum table(T-slot vacuum table) |
|
Max rapid travel rate |
60000mm/min |
|
Max working speed |
30000mm/min |
|
Spindle power (Linear or Disc) |
Automatic tool change spindle Italy HSD 9kw (option) |
|
Spindle speed |
0-24000RPM |
|
Spindle inverter |
Taiwan Delta inverter |
|
Working voltage |
AC380V/50/60Hz,3PH |
|
Command language |
G Code |
|
Operatiing system |
Taiwan Syntec system |
|
Collet |
ISO30 or HSK F63 (3.175/4/6/12.7mm. Optional ) |
|
X,Y Resolution |
<0.02mm |
|
Software compatiliby |
Type3/Artcam/Ncstudio/Ucancam/JDpaint etc software |
|
Running environment temperature |
0-45 centigrade |
|
Relative humidity |
30%-75% |
|
Packing size |
3100X2100X2250mm |
|
G.W. |
Approx. 1900kg |
|
Mini order quantity |
1 set |
|
warranty |
2 years |
|
Delivery time and payment |
7-30 days after get 30% payment by T/T |
|
Optional parts |
1.Vacuum pump(Germany Becker or chinese) |
|
Quality Control |
1.Strect control machine assembly each link, |
|
After sales service |
1.24 hour technical support by email, calling or MSN |

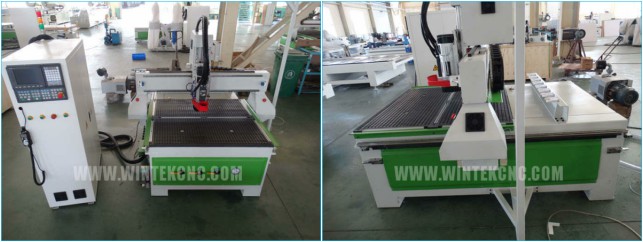

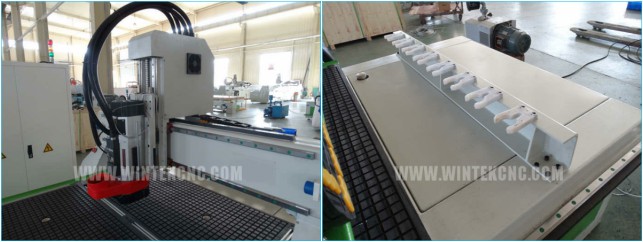

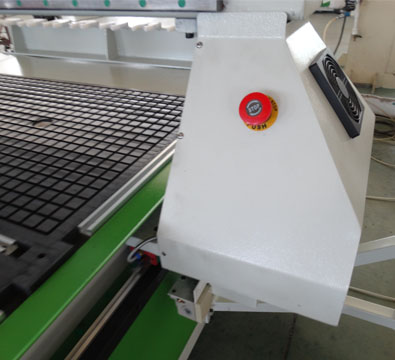

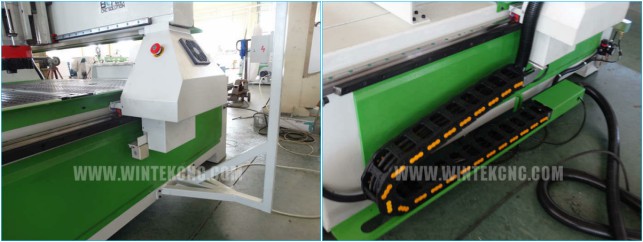

Details show of ATC wood cnc router :
Features of 3 axis ATC wood cnc router :
1.The working size is 1300mm*2500mm*200mm,for the Z axis can be increased.

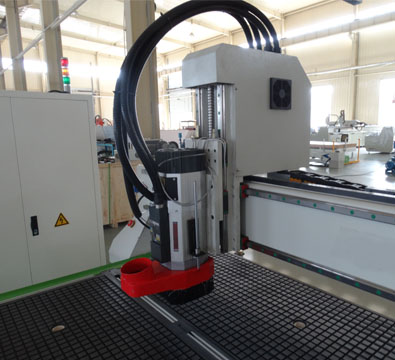

2.9kw Italy HSD ATC spindle with 11kw Taiwan DELTA inverter(top brand in the world,global warranty service).
3.Japan YASKAWA servo system (famous brand in the servo system).
4.Syntec controlling system,Germany SIEMENS control system optional (famous brand ,mulifunctional ,and longer life time).
5.High-performance wood cnc router machine with rotary device, but at a very economical price.
6.With linear to With linear tool changer, constructed with world-class components, consistent high performance.
7.Featuring Italian high frequency air-cooling electronic spindle and world-class servo motor and driving system.
8.Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
9.Taiwan Original TBI ball screw for Z travel.

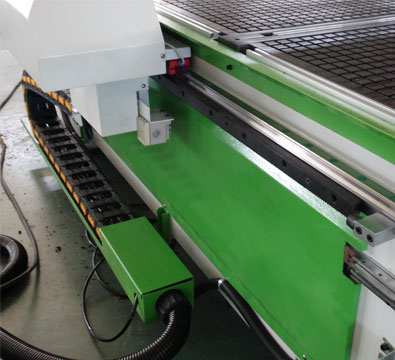

10.Taiwan HIWIN Linear guide.

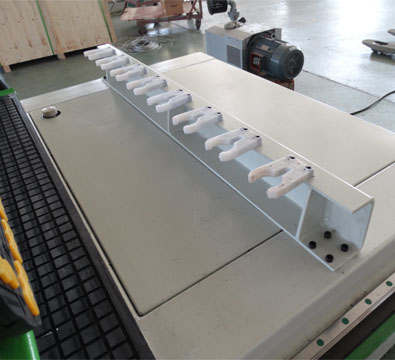

11.the Linear tool storage with 8 pieces.
