Model: WTM1325-ATC Category: ATC CNC Router
USD
16500-$22000$ USD FOB Qingdao
Automatic tool changer Syntec linear ATC CNC Router Machine can change tool automatically, it improve working efficiency greatly.
Automatic tool changer Syntec linear ATC CNC Router Machine
Application of automatic tool changer linear ATC CNC Router Machine :
1.Wood industry: Stereo Wave Plate Processing, cabinet doors, solid wood doors, Craft wood door, paint free door, folding screen, craft window, shoe-cleaning machine, game cabinet, mahjong table, computer table, and panel-type furniture’s assistance processing.
2.Advertisement industry: Advertisement label and logo, Acrylic cutting and blister molding, Multi Ad. Material and decoration products processing
3. Mold industry: Engrave on material like brass, Al, and Iron to make metal mold. And it can engrave on artificial Marble, gravel, plastic board, PVC pipes, wood, and alike Non-metal mold
4.Electronic product industry: Circuit board, insulation materials, the LED display, home appliance (color TV sets, washing machines, refrigerators) shell or model engraving and cutting.
4.Instrument industry: Engraving instruments 3D surface, Appearance cutting, such as cello, violin panel and head; guitar,erhu 3D surface engraving and cutting.
5.EVA processing industry: EVA packing materials lined engraving and cutting for tool equipment,medical equipment, electronic products,glass vessel.
6.Other industry:Engrave all kinds of image engraving and relief engraving. It is widely used art & craft industrindustries: The building model, the block, aviation block, propellers, car foam mold.
Technical Parameter of automatic tool changer linear ATC CNC Router Machine :
|
No. |
Description |
Parametrs |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm (4.3'x8.2'x0.7') |
|
2 |
Table Size |
1360x2940mm (4.5'x9.6') |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
|
4 |
X,Y,Z Repositioning Accuracy |
±0.01 mm |
|
5 |
Table Surface |
Vacuum and T-slot comnbined(option:T-slot table) |
|
6 |
Frame |
Steel Tube Welded Structure |
|
7 |
X,Y Structure |
Rack and Pinion Drive, Hiwin Rails Linear Bearings |
|
8 |
Z Structure |
Hiwin Rails Linear Bearings and Ball Screw |
|
9 |
Max. Power Consumption |
2.0kw(without spindle) |
|
10 |
Max. Rapid Travel Rate |
33,000mm/min |
|
11 |
Max. Working Speed |
25,000mm/min |
|
12 |
Spindle Power |
3KW/4.5KW/5.5KW (others are optional) |
|
13 |
Spindle Speed |
0-24000 RPM |
|
14 |
Drive Motors |
Stepper motor (Optional: servomotor) |
|
15 |
Working Voltage |
AC380V, 50/60Hz, 3PH (Option:220V) |
|
16 |
Command Language |
G Code |
|
17 |
Operating System |
DSP (Ncstudio is optional) |
|
18 |
Computer Interface |
USB |
|
19 |
Flash Memory |
128M (Flashdrive) |
|
20 |
Collet |
ER32 |
|
21 |
X,Y Resolution |
< 0.01mm |
|
22 |
Software Compatibility |
Type3/ Ucancame V9 software (Option: Artcam Software) |
|
23 |
Running Environment Temperature |
0°-45° |
|
24 |
Relative Humidity |
30%-75% |
|
25 |
Packing Size |
3400x2100x1980mm |
|
26 |
N.W. |
1400kg |
|
27 |
G.W. |
1600kg |
Advantages of the machine of wintek atc cnc router:
|
1. |
Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. |
|
2. |
Three axes adopt Taiwan HIWIN linear guide rail with high precision. |
|
3. |
Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured. |
|
4. |
X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission. |
|
5. |
Well compatibility: CAD/CAM designing software, such as type3/castmate/wentai/artcam, etc. |
|
6. |
This machine has the function of re-carving after break point or power failure and it can estimate the processing time. |
|
7. |
Manual/automatic oil-injection system allows the machine maintenance mush easier. |
|
8. |
Dust-collection device and considerate oil plate can always keep the working table clean. |
|
9. |
High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. |
|
10. |
We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs. |
|
11. |

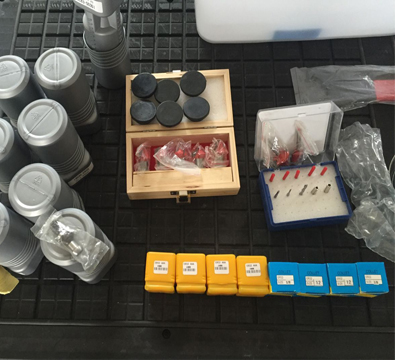

Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box. |
|
12. |
Whole machine will be wrapped with cling plastic and then packed into fumigation-free IPPC wooden case. |

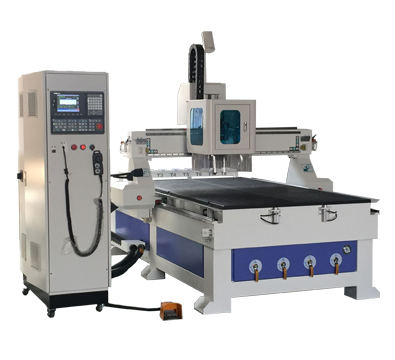

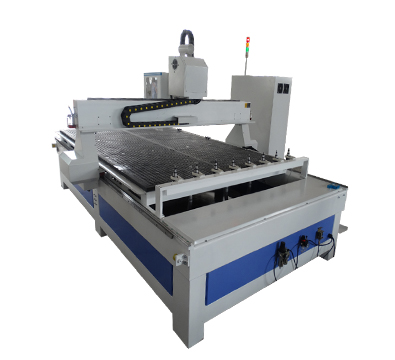

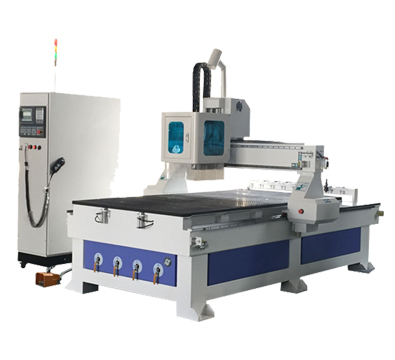

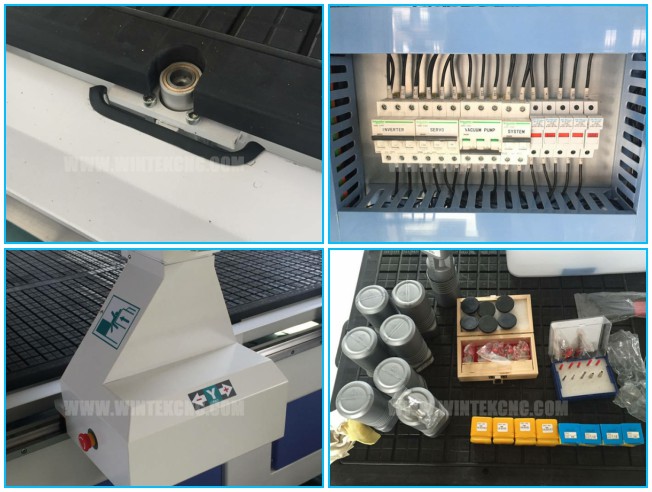

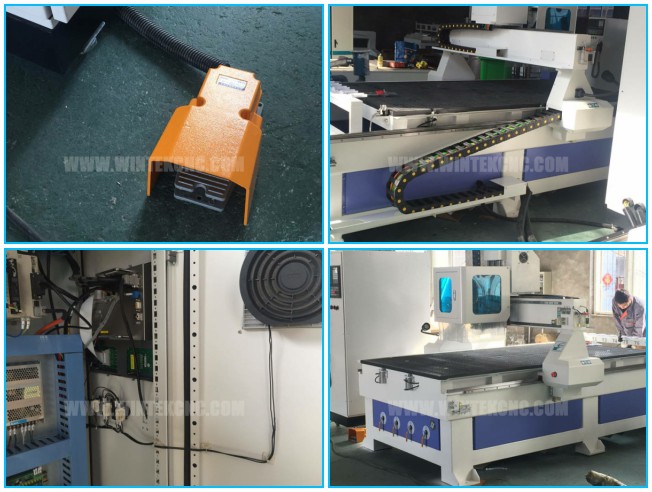

Automatic tool changer linear ATC CNC Router Machine Show :
Wintek has more atc models for choice : Automatic tool changer ATC CNC Router Machine
|
No. |
Description |
Parametrs |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm (4.3'x8.2'x0.7') |
|
2 |
Table Size |
1360x2940mm (4.5'x9.6') |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.01/300mm |
|
4 |
X,Y,Z Repositioning Accuracy |
±0.01 mm |
|
5 |
Table Surface |
Vacuum and T-slot comnbined(option:T-slot table) |
|
6 |
Frame |
Steel Tube Welded Structure |
|
7 |
X,Y Structure |
Rack and Pinion Drive, Hiwin Rails Linear Bearings |
|
8 |
Z Structure |
Hiwin Rails Linear Bearings and Ball Screw |
|
9 |
Max. Power Consumption |
2.0kw(without spindle) |
|
10 |
Max. Rapid Travel Rate |
33,000mm/min |
|
11 |
Max. Working Speed |
25,000mm/min |
|
12 |
Spindle Power |
3KW/4.5KW/5.5KW (others are optional) |
|
13 |
Spindle Speed |
0-24000 RPM |
|
14 |
Drive Motors |
Steppermotor (Optional: servomotor) |
|
15 |
Working Voltage |
AC380V, 50/60Hz, 3PH (Option:220V) |
|
16 |
Command Language |
G Code |
|
17 |
Operating System |
DSP (Ncstudio is optional) |
|
18 |
Computer Interface |
USB |
|
19 |
Flash Memory |
128M (Flashdrive) |
|
20 |
Collet |
ER32 |
|
21 |
X,Y Resolution |
< 0.01mm |
|
22 |
Software Compatibility |
Type3/ Ucancame V9 software (Option: Artcam Software) |
|
23 |
Running Environment Temperature |
0°-45° |
|
24 |
Relative Humidity |
30%-75% |
|
25 |
Packing Size |
3400x2100x1980mm |
|
26 |
N.W. |
1000kg |
|
27 |
G.W. |
1100kg |
