Model: WTG6090 Category: Advertising CNC Router
USD
1900-$2800 USD

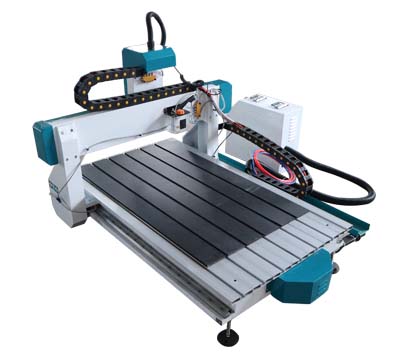

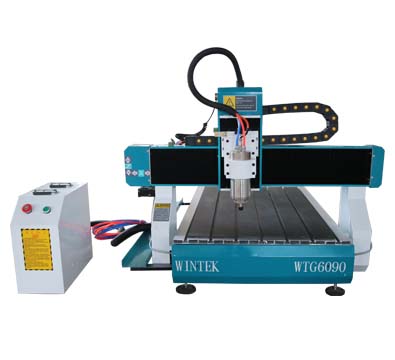

WINTEK Hobby chinese 4axis cnc router 6090 for sale is with a cheap price. It can engrave and cut wood,plywood,aluminum,pvc,glass,acrylic and many other materials.
Features of Chinese 4axis cnc router 6090 price,6090 cnc router for sale:
600*900*150mm effective working area.
1.5kw China Top brand water cooling spindle, Best quality in china, high precision and less noise.
1.5kw China Top brand Fuling Inverter, More stable Performance, easy to operation.
Mach3 control system humanized design can make it easy to operation (DSP,nc-studio optional).
Taiwan TBI ball screw for Z axis, high precision, smooth transmission.
New china brand and big strength stepper motor.
High speed gantry moving type.
Mist cooling system,Reduce the temperature,Extend the working life.
Cast iron structure,high precision.
Manual Lubrication system of all machine, just one press, easy to operation.
Technical Parameter of Chinese 4axis cnc router 6090 price,6090 cnc router for sale:
|
Model |
WTG6090 |
|
Working area: |
600x900x150mm (other size can be customized) |
|
Spindle type: |
1.5kw Water cooled spindle/ air cooling spindle |
|
Spindle power |
1.5kw/2.2kw/3.0kw |
|
Spindle rotating speed |
0-24000rpm |
|
Power (except spindle power) |
8.8KW (include powers of: motors, drivers, inverters and so on) |
|
Power supply: |
AC220±10, 50 HZ |
|
Worktable: |
T-slot table /Vacuum table |
|
Locating precision: |
<0.01mm |
|
Min shaping character: |
Character:3x3mm,letter:2x2mm |
|
Operating temperature: |
5°C-40°C |
|
Working humidity |
30%-75%(without condensed water) |
|
Working precision |
±0.03mm |
|
System resolution |
±0.001mm |
|
Control configuration: |
Mach3/DSP/ NC studio control system |
|
Data transfer interface: |
USB/PC |
|
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
|
Spindle cooling way: |
Water cooling by water pump (optional: chiller) |
|
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
|
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |

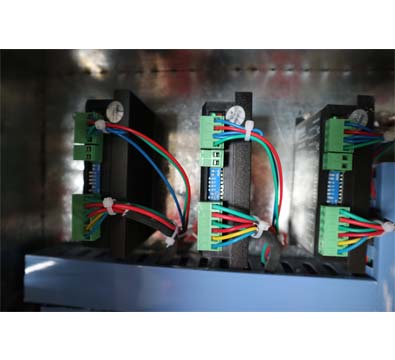

Details of Chinese 4axis cnc router 6090 price,6090 cnc router for sale:
Application of Chinese 4axis cnc router 6090 price,6090 cnc router for sale:
1. woodworking industries:
Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.
2. the advertising industry:
Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
3. the die-board industry:
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. other industries:
A variety of large-scale relief sculpture, video carving, widely used in gift processing industry
Packaging & Shipping
Woodworking tools for Chinese 4axis cnc router 6090 price,6090 cnc router for sale:
We have many other different models for your choice.
1.Advertising cnc router
2.Wood cnc router
