Model: WTG4040 Category: Advertising CNC Router
USD
USD 1800$-2300$ FOB Qingdao

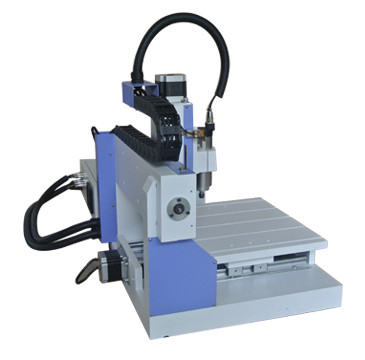

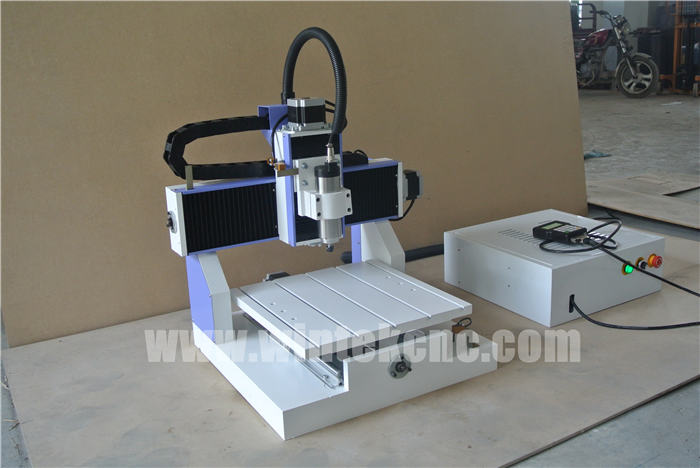

Hobby tabletop mini cnc router accuracy is high,can process wood,pcb,aluminum and many other materials.
Applicable Materials of hobby tabletop mini cnc router machine:
The Wintek mini CNC Router is a professional machine, used for sign, graphic fabrication,2D/3D machining (wood, acrylic, plastics, PVC, MDF etc.), stone fixture, display manufacturing, solid surface machining, Non-ferrous sheet metalwork (aluminium, brass, copper and zinc).
Hobby tabletop mini cnc router machine features:
1. The structure of this series of products is the whole cast iron machine body, with advantage of smooth engraving, not easy to break the blade.
2. Ball screws and linear guideway of the device adopts well-known international brand products, with high precision and can finish mill 4-6mil diameter line.
3. The device have good compatibility. It can be compatible with all G code file format, easy to use.
4. The wide applicability of our products, single-side mini-type sheet, double-sides mini-type sheet both can be processed.
5. The device is simple to operate, and the operator don't need a long period of professional training for operating the machine
Technical Parameter of hobby tabletop mini cnc router machine :
|
X Y axis working area: |
400 *400*60mm |
|
Z axis working area: |
<100mm |
|
Table size: |
550 x 650mm |
|
Max. speed: |
0 - 4,000mm/min |
|
Max. working speed: |
0 - 3,000mm/min |
|
Working delicacy: |
0.02mm |
|
Reposition accuracy: |
0.05mm |
|
Max. feeding height: |
110mm |
|
Engraving Command: |
G code, u00, mmg, plt |
|
Software: |
type3 /Wentai / Artcam software |
|
Max. power consumption: |
1.5kW |
|
Spindle: |
1.5kW variable speed, water cooled motor |
|
Spindle speed: |
24,000rpm |
|
Work type: |
stepper |
|
Weight: |
75kg |
|
Working voltage: |
AC 220V, 50/60Hz |
|
Memory: |
32M |
|
Manner of receiving data: |
USB |
|
Running circumstance temperature: |
0 - 45°C |
|
Relative humidity: |
30% - 75% |
Samples of hobby tabletop mini cnc router machine :
|
X Y axis working area: |
300 *300*60mm |
|
Z axis working area: |
<100mm |
|
Table size: |
550 x 650mm |
|
Max. speed: |
0 - 4,000mm/min |
|
Max. working speed: |
0 - 3,000mm/min |
|
Working delicacy: |
0.02mm |
|
Reposition accuracy: |
0.05mm |
|
Max. feeding height: |
110mm |
|
Engraving Command: |
G code, u00, mmg, plt |
|
Software: |
type3 /Wentai / Artcam software |
|
Max. power consumption: |
1.5kW |
|
Spindle: |
1.5kW variable speed, water cooled motor |
|
Spindle speed: |
24,000rpm |
|
Work type: |
stepper |
|
Weight: |
75kg |
|
Working voltage: |
AC 220V, 50/60Hz |
|
Memory: |
32M |
|
Manner of receiving data: |
USB |
|
Running circumstance temperature: |
0 - 45°C |
|
Relative humidity: |
30% - 75% |
